Radium 14-0177 Y-Adapter Block, 8AN Male to Dual 6AN Male
Radium 14-0177 Y-Adapter Block, 8AN Male to Dual 6AN Male
SKU: SKU: 14-0177
More info
The Radium Engineering 14-0177 is a precision-machined Y-Adapter Block, 8AN Male to Dual 6AN Male fitting for fuel, oil and other fluid systems.
About the Range

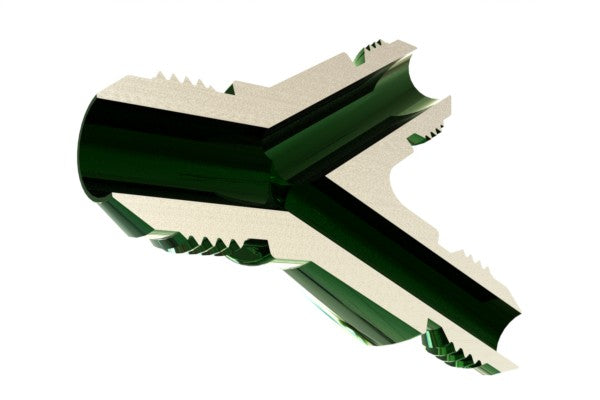

This one piece CNC machined 6061 aluminum adapter that ensures the most direct path for unrestricted flow. Lightweight and compact for tight areas, the Y-fittings secure directly to hose ends without the need for extra adapter fittings. Type-II green anodized surface finish for corrosion resistance, these Y-fittings can be used for multiple fluids including: gasoline, ethanol, methanol, coolant, water, air, oil, etc.
Specifications
| Part Number | 14-0177 |
| 8AN Thread | 3/4"-16 (37° flare) |
| 6AN Thread | 9/16"-18 (37° flare) |
| Connection | Y-Adapter Block, 8AN Male to Dual 6AN Male |
Installation Notes
- AN flare connections should be installed dry and clean. Hand thread until fully engaged, then tighten 1/4 to 1/2 turn.
Related AN & ORB Adapter Fittings
- 14-0186 Y-Adapter Block, 6AN Male to Dual 6AN Male
- 14-0291 6AN ORB to 8.5mm Barb Fitting
- 14-0294 8AN ORB to 8.5mm Barb Fitting
- 14-0691 6AN ORB to 10mm Barb Fitting
- 14-0694 8AN ORB to 10mm Barb Fitting
- 14-0130 10AN ORB to 6AN Male Flare Fitting
- 14-0151 8AN ORB to 6AN Male Flare Fitting
- 14-0152 8AN ORB to 8AN Male Flare Fitting
- 14-0131 10AN ORB to 8AN Male Flare Fitting
- 14-0153 8AN ORB to 10AN Male Flare Fitting
See the full range: Radium AN & ORB Adapter Fittings
Why Radium Engineering?
- ✔ Designed and manufactured in the USA
- ✔ CNC machined, precision fit
- ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
- ✔ Exclusively distributed in Australia by Coore
Genuine Radium Engineering product, supplied by Coore Australia. Sold individually.
