Radium 14-0148-06 Inline 6AN Male to 6AN Female Fitting with 1/8" NPT Port

Radium 14-0148-06 Inline 6AN Male to 6AN Female Fitting with 1/8" NPT Port

Application: Universal – any 6AN hose connection
Part Type: Inline 6AN adaptor with 1/8" NPT female port
Part Number: 14-0148-06

The Radium 14-0148-06 inline fitting makes it easy to add a gauge or sensor at the end of any 6AN hose connection, using its 1/8" NPT female side port for a fuel pressure gauge, sensor or other accessory.

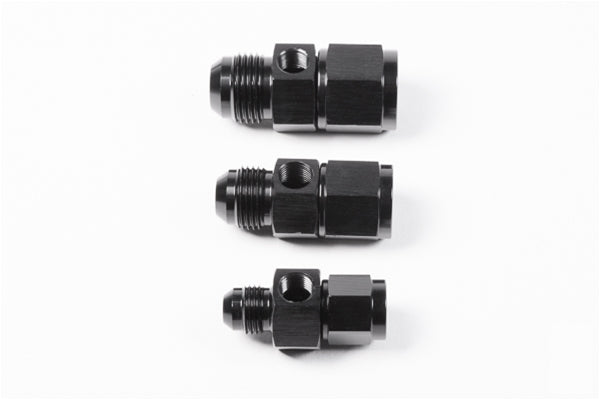

Radium offers this inline fitting in 6AN (14-0148-06), 8AN (14-0148-08) and 10AN (14-0148-10) sizes.

Key Features

• AN Size: 6AN inline
• Side Port: 1/8" NPT female
• Use: Adds a gauge or sensor to the end of any AN hose connection

What's Included

• 1 x inline fitting

Important Notes

• AN ends should be installed clean and dry. Hand tighten until the flares seat against each other, then tighten a further 1/4 to 1/2 turn – overtightening can damage AN fittings
• The 1/8" NPT port requires sealant: use PTFE-based thread sealant tape or paste, hand tighten, then turn a further 1.5 to 3 turns
• Do not fully tighten gauges by hand, as this can cause damage
• Gauge or sensor not included

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
