Radium 1/4" Push-To-Connect Vacuum Port Adaptor

Radium 1/4" Push-To-Connect Vacuum Port Adaptor

Application: Radium fuel pressure regulators and fuel pulse dampers with a #10-32 vacuum reference port
Part Type: Vacuum port adaptor, #10-32 thread to 1/4" push-to-connect
Part Number: 14-0769

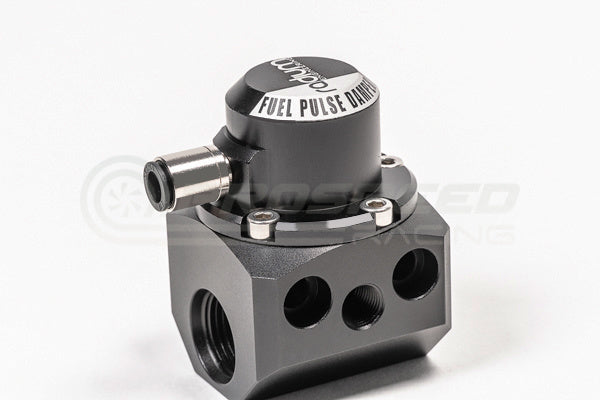

Every Radium adjustable fuel pressure regulator and fuel pulse damper has an empty threaded port that works as a 1:1 rising/falling-rate vacuum reference. The Radium 14-0769 adaptor threads into that #10-32 port and accepts 1/4" push-to-connect tubing, giving a neat, tool-free connection for your vacuum/boost reference line.

Use it to replace a lost fitting or to add a vacuum reference to a unit that was supplied without one. It is machined from brass, nickel plated and sealed with Buna-N O-rings.

Key Features

• #10-32 Thread: Threads straight into the vacuum reference port on Radium regulators and dampers
• Push-To-Connect: Accepts 1/4" OD hard plastic tubing for a tool-free connection
• Nickel-Plated Brass: Machined brass body with nickel plating
• Buna-N O-Rings: O-ring sealed connection
• Wide Compatibility: Suits Radium MPR, DMR, DFPR, FST-R, MPFST-R, FPD-R, FPD-XR, FPR-D and Radium fuel hangers

Optional Parts

• Radium 3/16" Barb Vacuum Port Adaptor (14-0190) – alternative adaptor for 4mm, 5mm or 6mm hose
• Radium Universal 3AN Vacuum Port Adapter (14-0369) – alternative adaptor for 3AN hose (not compatible with FPD-R units built before July 2019)

Important Notes

• Requires 1/4" OD hard plastic tubing – sold separately
• Radium recommends a medium-strength wicking thread locker, such as green Loctite 290, when installing
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium MPR Multi-Port Regulator
• Radium DMR Direct Mount Regulator
• Radium DFPR Dual Fuel Pressure Regulator
• Radium FST-R Fuel Surge Tank-Regulated
• Radium MPFST-R Multi-Pump Fuel Surge Tank-Regulated
• Radium FPD-R Fuel Pulse Damper-Range
• Radium FPD-XR Fuel Pulse Damper-Extra Range
• Radium FPR-D Fuel Pressure Regulator-Damper
• Radium fuel hangers (BMW, Ford, Nissan and others)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
