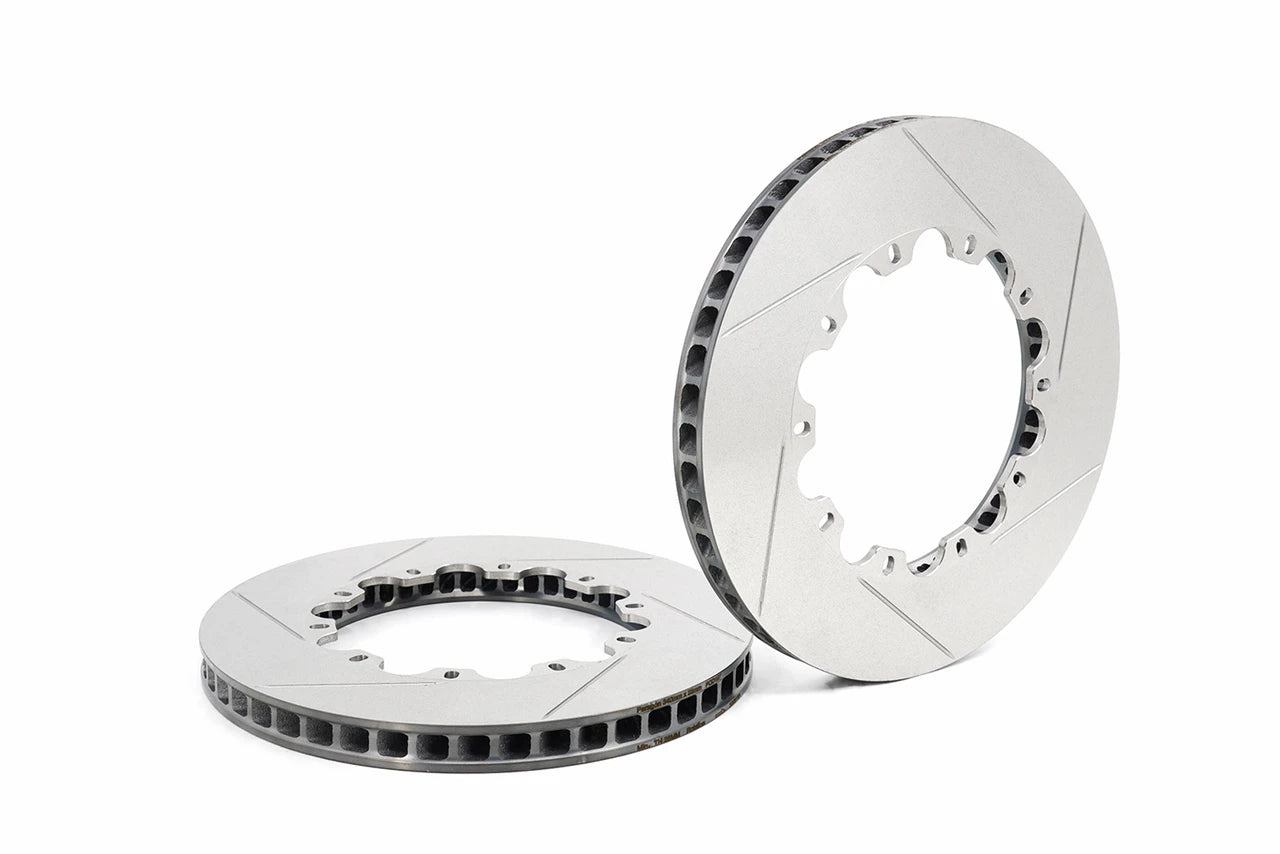

Paragon Performance Rotor Rings 345mm x 28mm — P.C.D. 223mm — 10x8.1mm Oval Mounting — D50 (Pair)

Paragon Performance Rotor Rings 345mm x 28mm — 223mm P.C.D. — D50

Application: 345mm x 28mm rotor rings with 223mm P.C.D. and 10x8.1mm oval mounting
Part Number: PRR.8009.345.2370.280.22300.08.01.L/R
Design Code: D50

Direct Replacement of: Brembo 09.5759.94/95 / 09.5759.96/97 — DBA52915.1

Paragon Performance rotor rings offer superior braking and cooling efficiency optimised for track and race applications. Directional ventilation vanes create suction, turbulence, and guide cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track conditions. Run up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration, then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotor rings went through rigorous quality control procedures and inspections to ensure the rotor rings are fit for their purposes. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipates heat and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or rainy conditions by preventing water films from forming between the brake pad and rotor surface. Weighing less than most O.E. rotors while maintaining proper thermal capacity, these rotors improve overall handling by saving unsprung mass.

2-piece design minimises brake fade & judder during extended sessions.

Includes:

• One pair of Paragon Performance Rotor Rings (LH & RH)
• Detailed installation manual

Extra/replacement hardware is available for purchase. We recommend using new hardware when replacing rotors to ensure the rotor ring is attached to the aluminium hat properly. Please refer to the Rotor Assembly Instructions for torque specs and detailed instructions.

Specifications:

Cross Reference:

Sold as a pair. Price includes both left and right rotor rings.

Lead time is typically 7–14 business days. Contact us at sales@coore.com.au for availability and fitment confirmation before ordering.
