Öhlins Road & Track Coilovers – BMW M2 F87 / M3 F80 / M4 F82

Öhlins Road & Track Coilovers – BMW M2 F87 / M3 F80 / M4 F82

Part Number: BMS MR40S1 | Fitment: BMW M2 F87, M3 F80 & M4 F82

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Features temperature-compensated damping for consistent performance in all conditions. Öhlins has extensively tested these springs across all conditions — on public roads and on track — and recommends using the included spring rates. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.

Vehicle Fitment

Technical Specifications

Included Springs

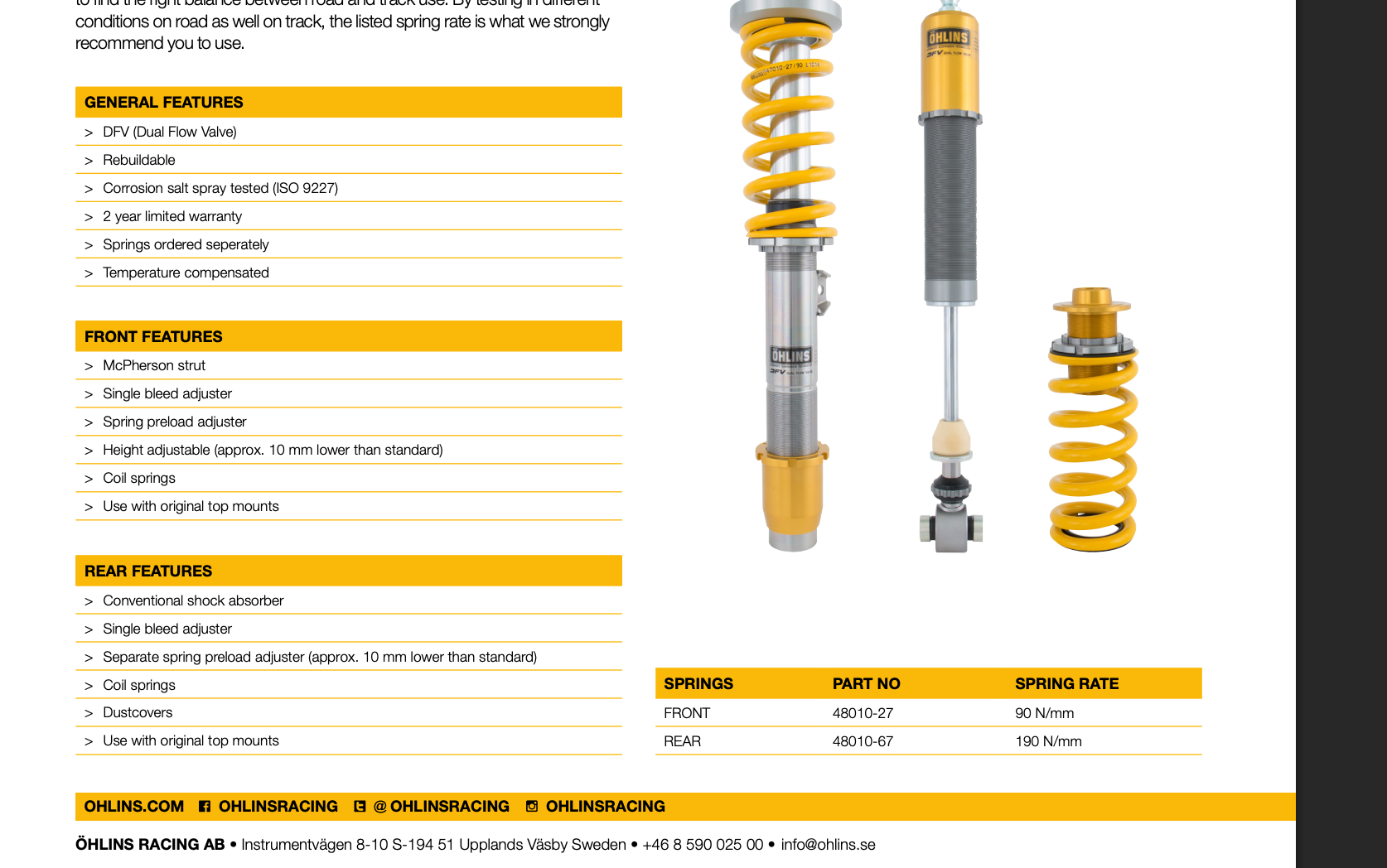

General Features

• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Temperature-compensated damping for consistent performance in all conditions
• Individual ride height adjustment via threaded lower flange (spring seat position maintained)
• Spring preload adjustment with included C-spanner
• Rebuildable construction for long-term serviceability
• Corrosion salt spray tested to ISO 9227
• 2-year worldwide limited warranty
• Front & rear springs included

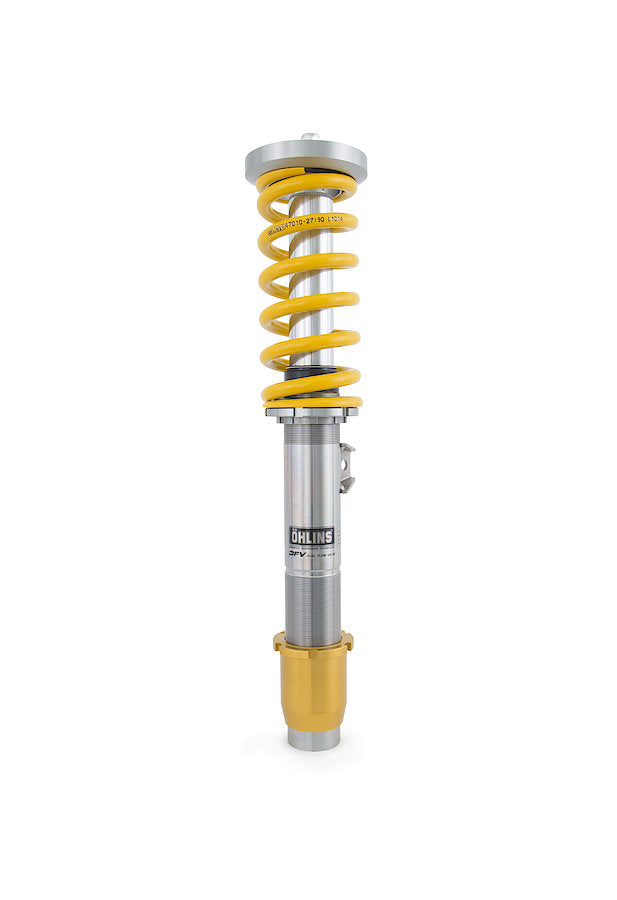

Front Features

• McPherson strut design
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. 10mm lower than standard
• Coil springs included (90 N/mm)
• Use with original top mounts

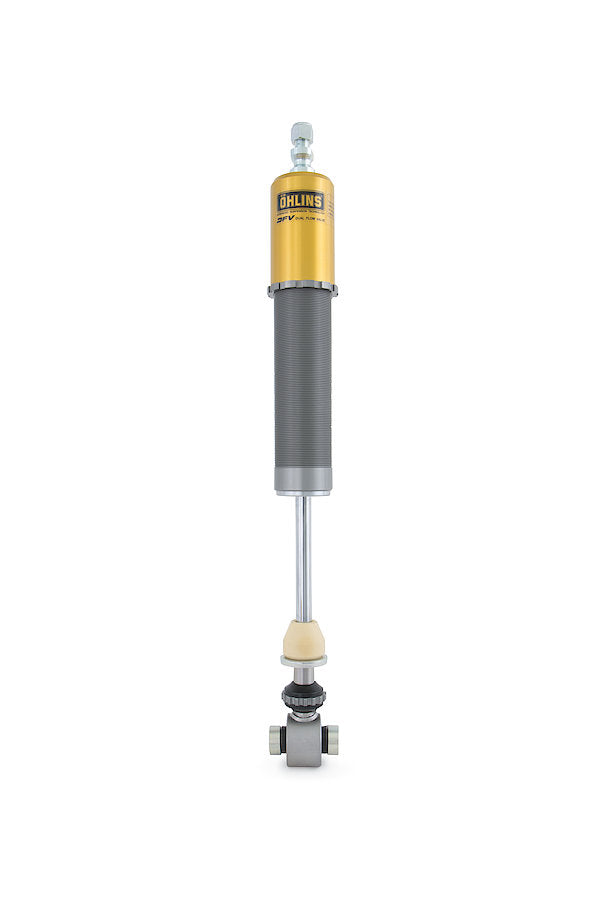

Rear Features

• Conventional shock absorber design
• Single bleed adjuster
• Separate spring preload adjuster
• Height adjustable — approx. 10mm lower than standard
• Coil springs included (190 N/mm)
• Dustcovers included
• Use with original top mounts

Kit Contents

• Complete coilover kit including springs and all mounting hardware
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set

What is DFV (Dual Flow Valve)?

DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.

Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.

Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.

Why Öhlins Road & Track?

• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
• ✅ Rebuildable and fully serviceable for long-term ownership and track use
• ✅ Precision ride height adjustment via threaded lower flange — spring geometry is never compromised
• ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
