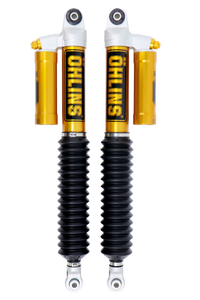

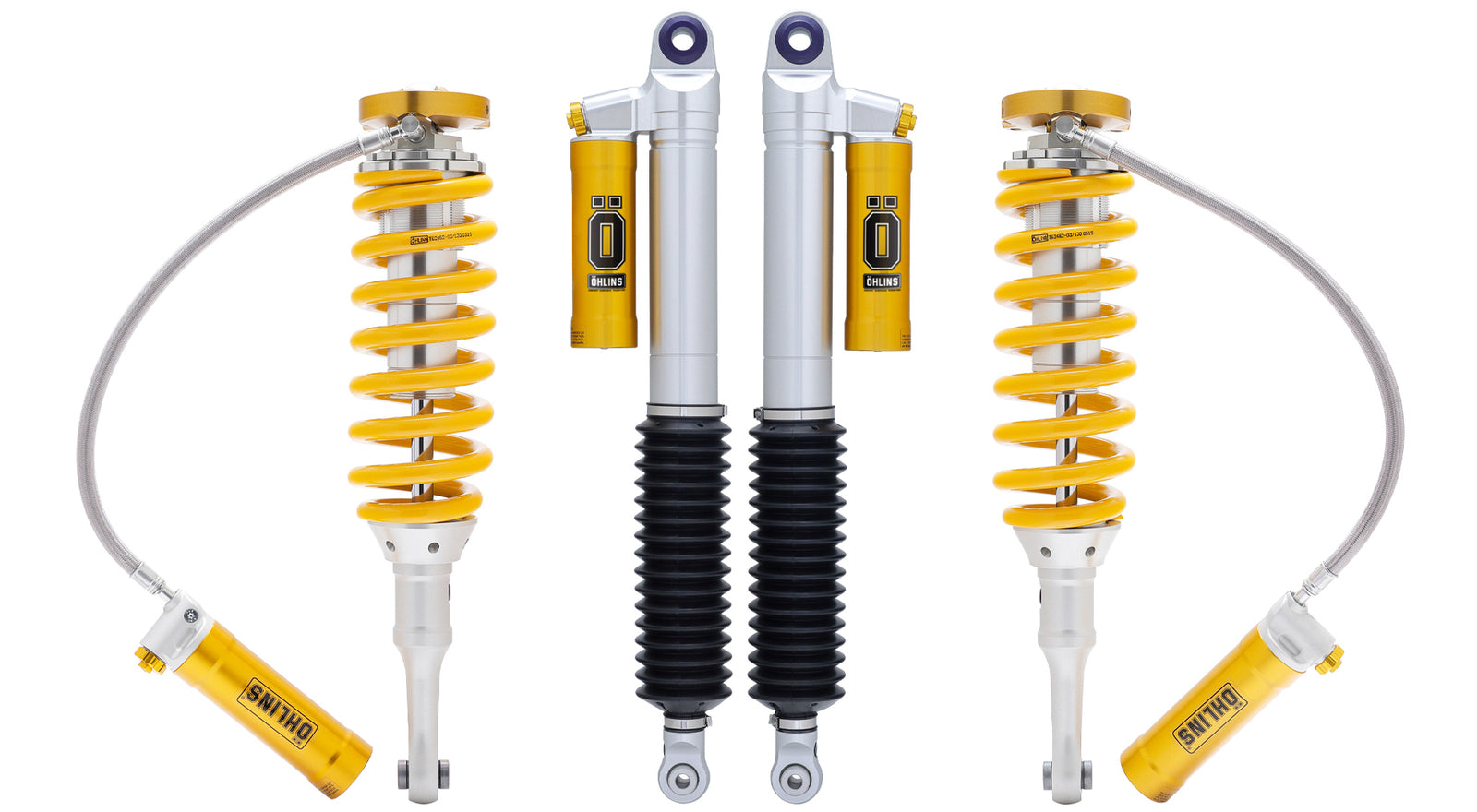

Öhlins Adventure STX 18/46 Suspension Kit – Ford Ranger NextGen P703 (2022+)
Part Numbers: FOV1X10 (FL) / FOV2X10 (FR) / FOV3X10 (RL) / FOV4X10 (RR) | Chassis: P703 | Fitment: Ford Ranger NextGen 2022+

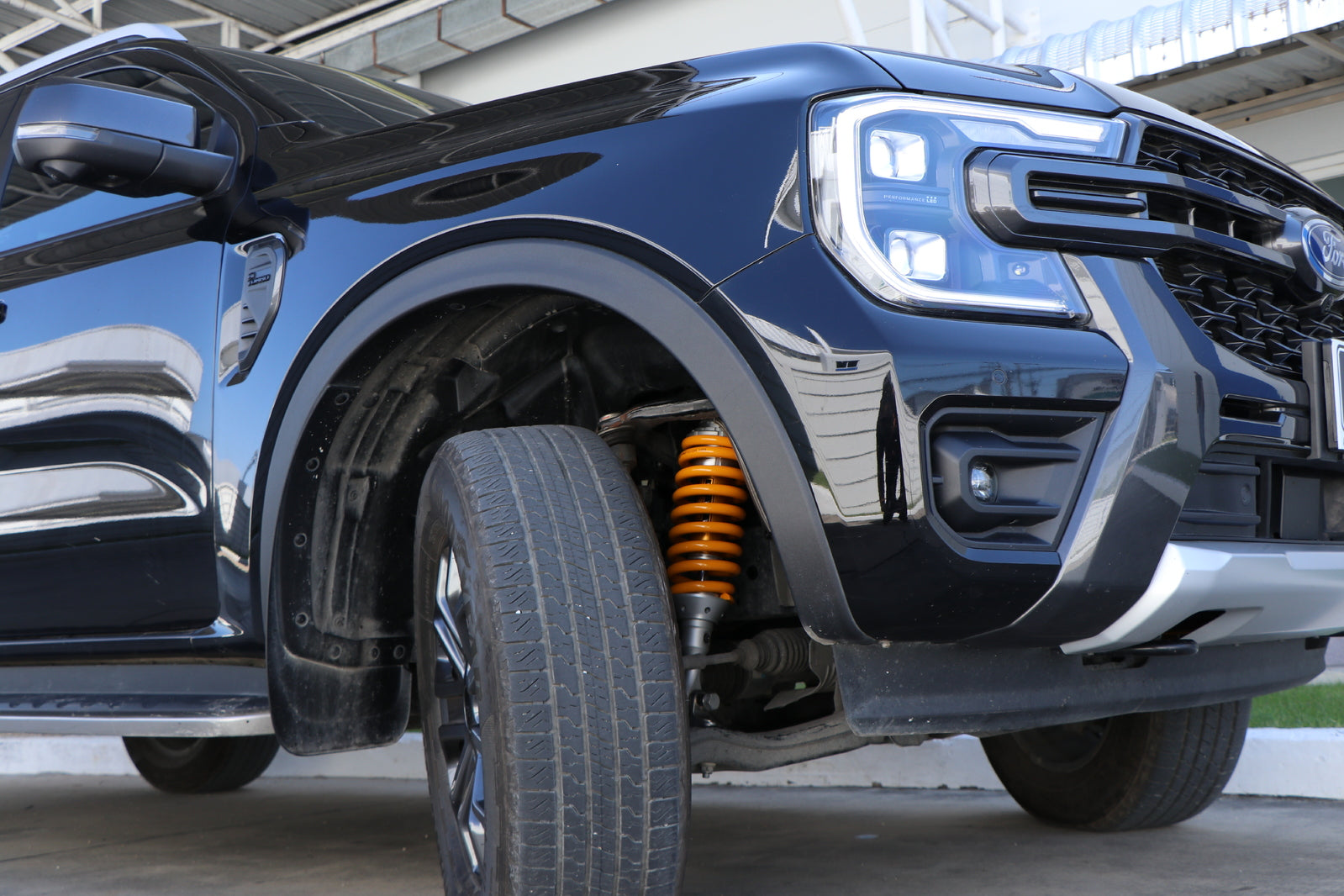

Öhlins Adventure suspension will give your Ford Ranger better grip, enhanced handling through sharp turns, and more stability — whether driving through town or off-road through mud, sand, rocks, and water. Featuring STX 18/46 technology with 3-way adjustable damping (high/low speed compression and rebound), this kit can be set to suit your driving style and road conditions.
With greater traction and control and the capacity to lift your vehicle up to +2 inches (50mm), you can run increased ground clearance and larger tyres. Öhlins top mounts are included at the front for a precision fitment.
⚠️ Note: Front springs are not included and must be ordered separately. Three spring rate options are available — see table below.
Vehicle Fitment
| Ford Ranger NextGen | P703 — 2022 to present |
Part Numbers
| Position | Part No |
|---|---|
| Front Left | FOV1X10 |
| Front Right | FOV2X10 |

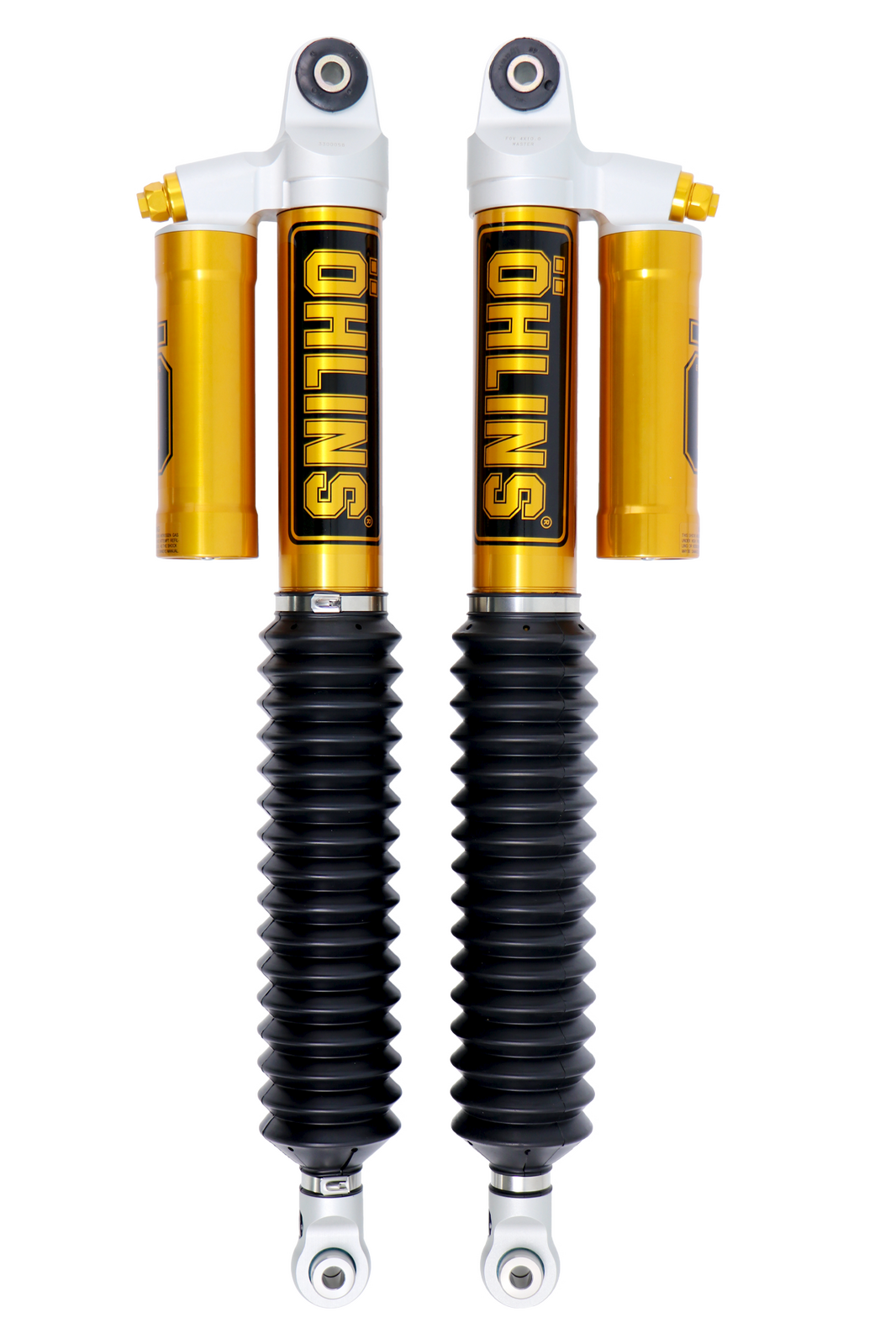

| Rear Left | FOV3X10 |
| Rear Right | FOV4X10 |
Technical Specifications
| Technology | STX 18/46 |
| Damping Adjustment | 3-way — hi/lo speed compression & rebound |

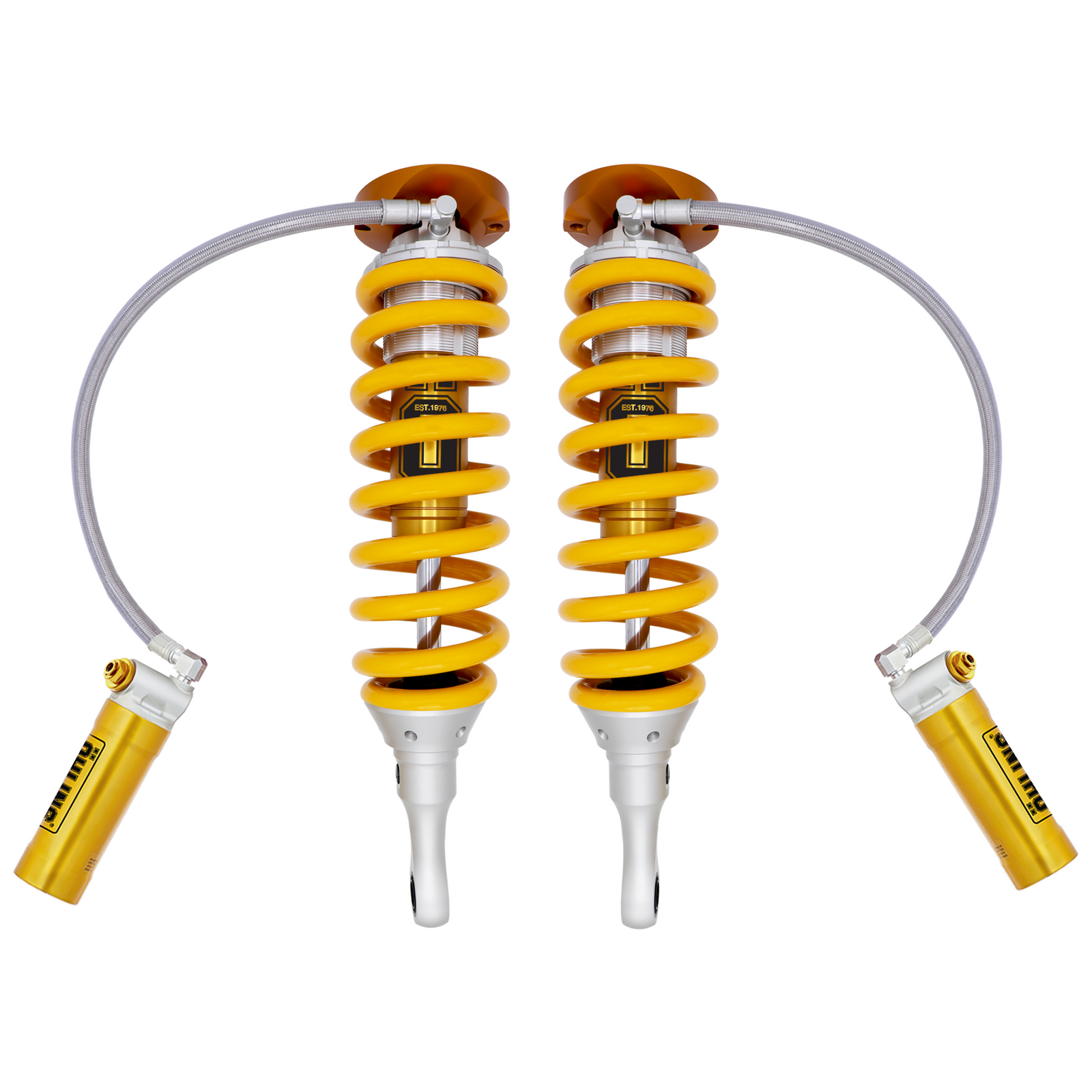

| Front Top Mounts | Öhlins top mounts included |
| Front Spring Preload | Adjustable |

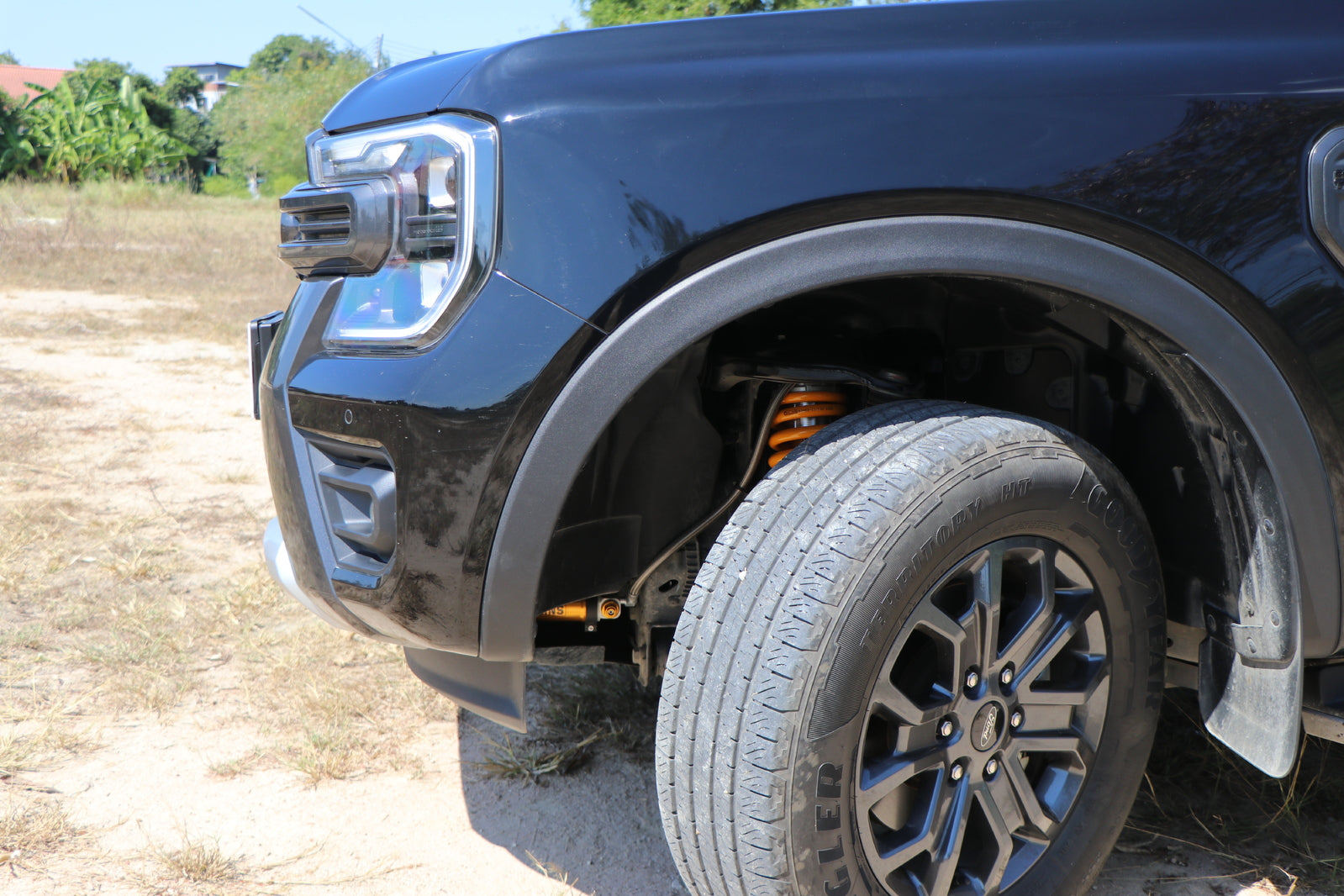

| Front Damper Mounting | Ball joint mounted |

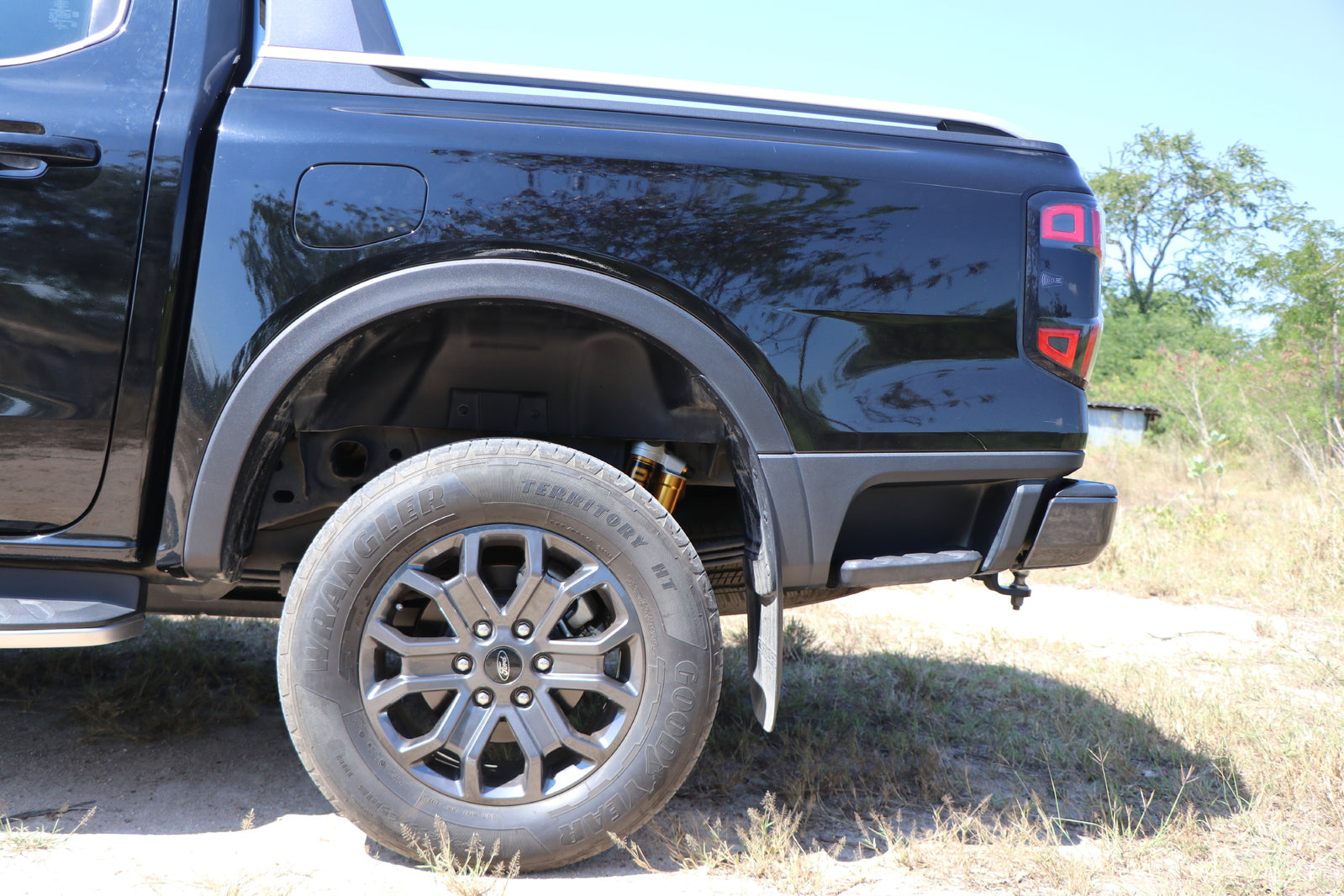

| Rear Damper Mounting | Ball joint and rubber bushing mounted |
| Lift Range | 0" to 2" (0–50mm) |
| Front Springs | 3 rates available — ordered separately |
| Warranty | 2-year limited warranty |
Front Spring Options (ordered separately)
| Part No | Spring Rate |
|---|---|
| 62462-11 | 110 N/mm |
| 62462-01 | 120 N/mm |
| 62462-02 | 130 N/mm |
General Features
- STX 18/46 Adventure technology
- 3-way adjustable damping — hi/lo speed compression and rebound
- Öhlins top mounts included (front)
- Front spring preload adjustable
- Ball joint mounted front dampers
- Ball joint and rubber bushing mounted rear dampers
- Lift range 0–2" (0–50mm)
- 3 front spring rate options available (ordered separately)
- 2-year limited warranty
Why Öhlins Adventure?
- ✅ Over 40 years of motorsport and off-road engineering heritage
- ✅ STX 18/46 technology — 3-way adjustable for street, touring, and off-road use
- ✅ Öhlins top mounts included — precision fitment, no compromise
- ✅ 0–2" lift range — run larger tyres and increased ground clearance
- ✅ Rebuildable and fully serviceable — backed by a 2-year limited warranty
