Injector Dynamics XDS Injectors – 48mm, 14mm Top, 4-Cyl Set | Honda Integra DC5, Acura RSX

Injector Dynamics XDS Injectors – 48mm, 14mm Top, 4-Cyl Set | Honda Integra DC5, Acura RSX

Application: Honda Integra DC5 2002–2009, Acura RSX 2002–2009
Part Type: Fuel injector set (4)
Part Numbers: 1050.48.14.14.4, 1300.48.14.14.4, 1750.48.14.14.4, 2600.48.14.14.4

This listing covers the Injector Dynamics XDS injector set in the 48mm body, 14mm top configuration, supplied as a set of four for four-cylinder engines. It suits the Honda Integra DC5 and Acura RSX (2002–2009).

Choose your flow rate from the Injector Size option: ID1050X, ID1300X, ID1750X or ID2600-XDS. Every size uses the same 48mm / 14mm top configuration, so you can match the injector to your power target and fuel without changing fitment.

Key Features

• High impedance design – no resistor box required
• USCAR electrical connector
• Compatible with all known fuels, including E85
• Corrosion-resistant internals
• Replaceable inlet filter extends service life
• Flow-matched set of four

Available Sizes

• ID1050X / ID1050-XDS (1050cc) – 1050.48.14.14.4 – nominal flow 1065cc/min @ 3.0 bar (43.5 psi) on gasoline at 52°C
• ID1300X / ID1300-XDS (1300cc) – 1300.48.14.14.4
• ID1750X / ID1750-XDS (1750cc) – 1750.48.14.14.4
• ID2600-XDS (2600cc) – 2600.48.14.14.4

What's Included

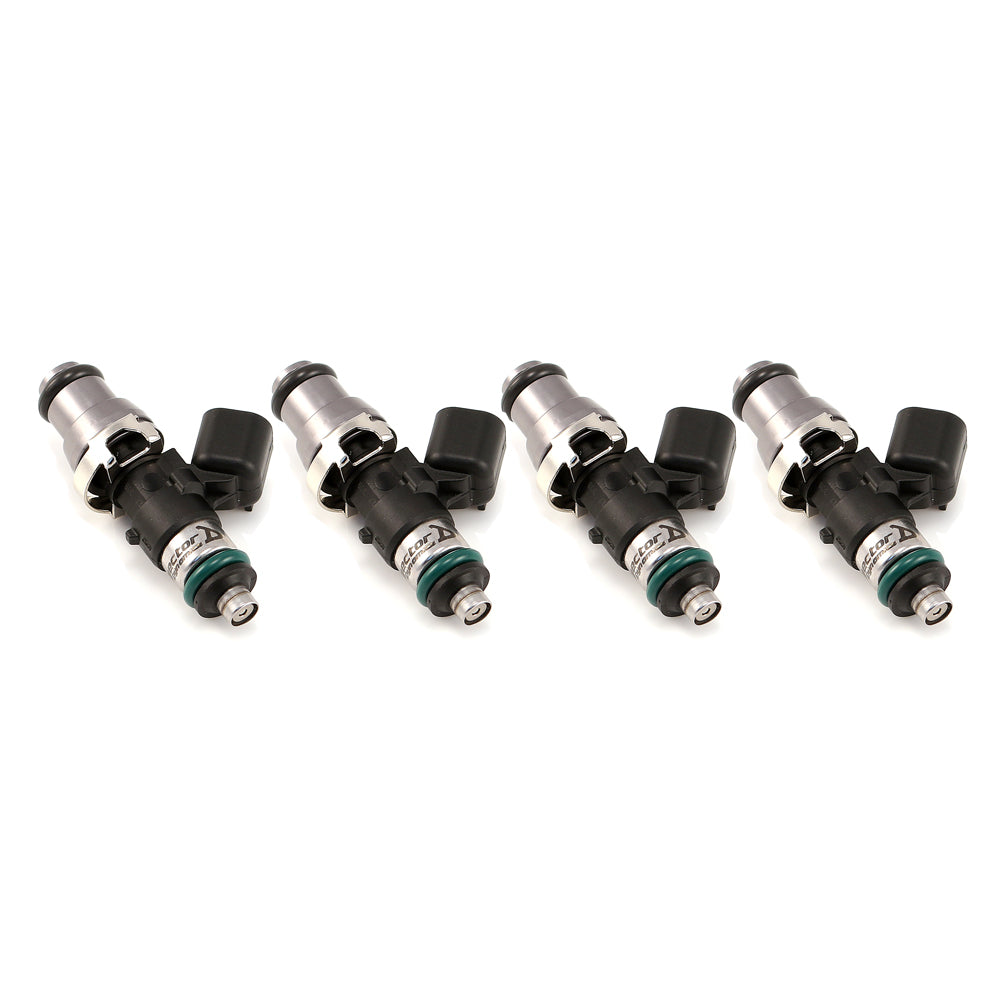

• 4 x Injector Dynamics XDS fuel injectors, 48mm body with 14mm top, in your chosen size

Important Notes

• An ECU tune is required. Your tuner will need the injector data for your chosen size.
• All Injector Dynamics injectors are high impedance. If your car uses low-impedance injectors with a resistor box, the resistor box must be bypassed.
• This set suits the 2002-on Integra DC5 and RSX. The earlier Honda Integra 1996–2001 uses the 60mm, 11mm top set – see the Injector Dynamics XDS Civic / Prelude / Integra 11mm 4-cyl set.
• See all Injector Dynamics Honda K-Series injectors.

Vehicle Fitment

• Honda Integra DC5 2002–2009
• Acura RSX 2002–2009

Not sure which set suits your car? Email sales@coore.com.au and our team will confirm fitment.
