Injector Dynamics XDS Injectors – 48mm, 14mm Top, 5-Cyl Set | Ford Focus RS Mk2

Injector Dynamics XDS Injectors – 48mm, 14mm Top, 5-Cyl Set | Ford Focus RS Mk2

Application: Ford Focus RS Mk2 (2.5L 5-cylinder turbo)
Part Type: Fuel injector set (5)
Part Numbers: 1050.48.14.14.5, 1300.48.14.14.5, 1750.48.14.14.5, 2600.48.14.14.5

This listing covers the Injector Dynamics XDS injector set in the 48mm body, 14mm top configuration, supplied as a set of five for five-cylinder engines. It suits the Ford Focus RS Mk2 with the 2.5L five-cylinder turbo engine.

Choose your flow rate from the Injector Size option: ID1050X, ID1300X, ID1750X or ID2600-XDS. Every size uses the same 48mm / 14mm top configuration, so you can match the injector to your power target and fuel without changing fitment.

Key Features

• Corrosion-resistant internals, compatible with all known fuels including E85
• High impedance design – no resistor box required
• USCAR electrical connector
• Replaceable inlet filter extends service life
• Flow-matched set of five

Available Sizes

• ID1050X / ID1050-XDS (1050cc) – 1050.48.14.14.5 – nominal flow 1065cc/min @ 3.0 bar (43.5 psi) on gasoline at 52°C
• ID1300X / ID1300-XDS (1300cc) – 1300.48.14.14.5
• ID1750X / ID1750-XDS (1750cc) – 1750.48.14.14.5
• ID2600-XDS (2600cc) – 2600.48.14.14.5

What's Included

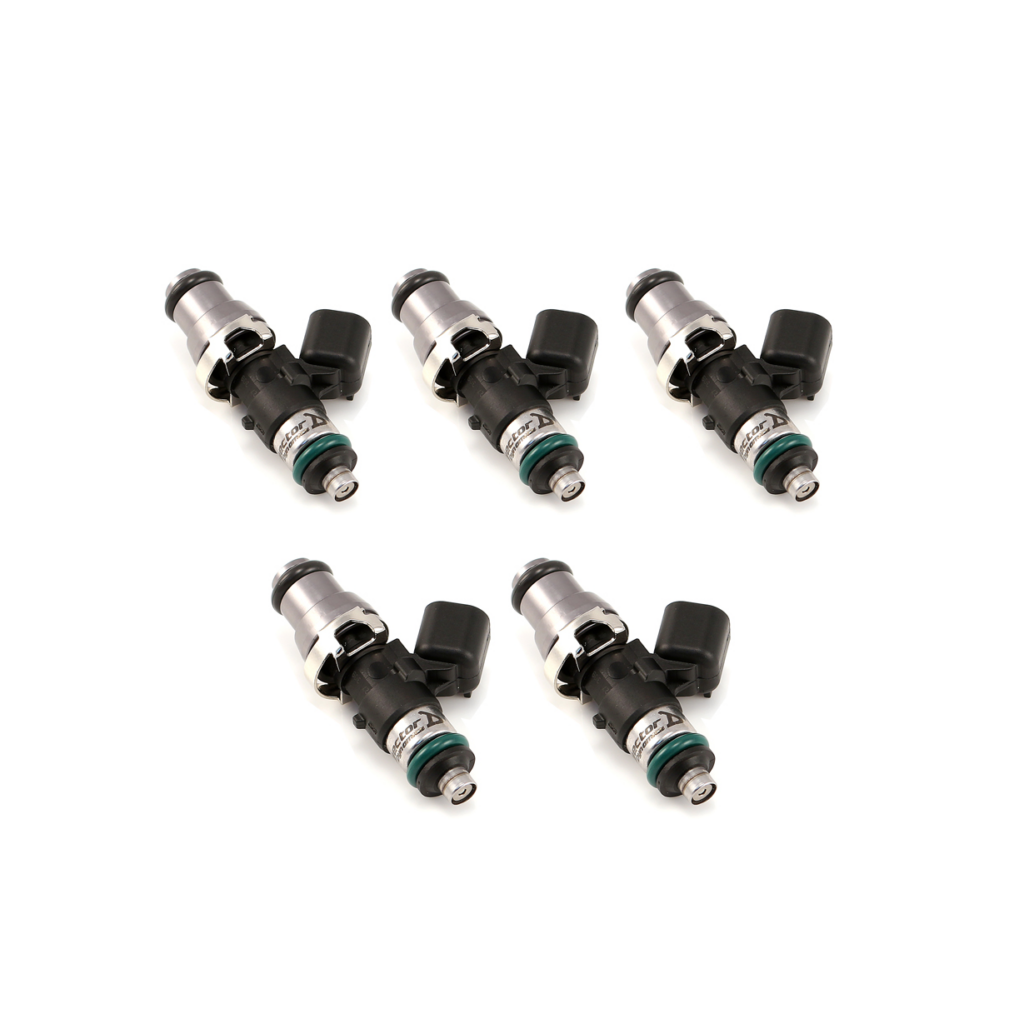

• 5 x Injector Dynamics XDS fuel injectors, 48mm body, 14mm top, in your chosen size

Important Notes

• An ECU tune is required. Your tuner will need the injector data for your chosen size.
• All Injector Dynamics injectors are high impedance. If your car uses low-impedance injectors with a resistor box, the resistor box must be bypassed.
• This is a five-cylinder set. The four-cylinder Ford Focus RS Mk1 (2.0L) uses the Injector Dynamics XDS 60mm, 14mm top 4-cyl set.

Vehicle Fitment

• Ford Focus RS Mk2 – 2.5L 5-cylinder turbo

Not sure which set suits your car? Email sales@coore.com.au and our team will confirm fitment.
