Injector Dynamics XDS Injectors – 60mm, 14mm Top, 4-Cyl Set | Toyota 3S-GTE, VW/Audi 1.8T, Mazda MX-5 NC

Injector Dynamics XDS Injectors – 60mm, 14mm Top, 4-Cyl Set | Toyota 3S-GTE, VW/Audi 1.8T, Mazda MX-5 NC

Application: Toyota MR2 Turbo 3S-GTE (14mm top), VW 1.8T, Audi 1.8T, Mazda MX-5 NC 2006–2014
Part Type: Fuel injector set (4)
Part Numbers: 1050.60.14.14B.4, 1300.60.14.14B.4, 1750.60.14.14B.4, 2600.60.14.14B.4

This listing covers the Injector Dynamics XDS injector set in the 60mm body, 14mm top configuration, supplied as a set of four for four-cylinder engines. It suits the Toyota MR2 Turbo 3S-GTE (14mm top), VW and Audi 1.8T, and the Mazda MX-5 NC.

Choose your flow rate from the Injector Size option: ID1050X, ID1300X, ID1750X or ID2600-XDS. Every size uses the same 60mm / 14mm top configuration, so you can match the injector to your power target and fuel without changing fitment.

Key Features

• Corrosion-resistant internals, compatible with all known fuels including E85
• Compact body suits engines that use short-body injectors
• USCAR electrical connector
• High impedance design
• Replaceable inlet filter extends service life
• Sold as a set of four

Available Sizes

• ID1050X / ID1050-XDS (1050cc) – 1050.60.14.14B.4 – nominal flow 1065cc/min @ 3.0 bar (43.5 psi) on gasoline at 52°C
• ID1300X / ID1300-XDS (1300cc) – 1300.60.14.14B.4
• ID1750X / ID1750-XDS (1750cc) – 1750.60.14.14B.4
• ID2600-XDS (2600cc) – 2600.60.14.14B.4

What's Included

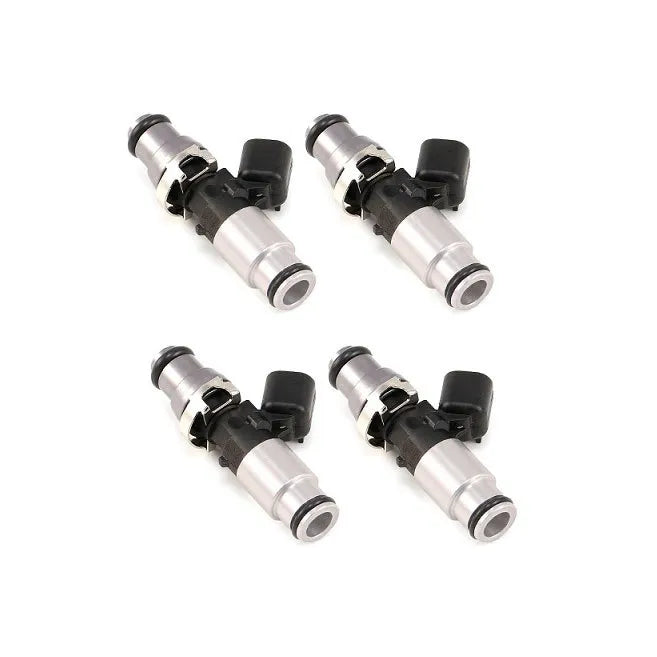

• 4 x Injector Dynamics XDS fuel injectors, 60mm body with 14mm top, in your chosen size

Important Notes

• An ECU tune is required. Your tuner will need the injector data for your chosen size.
• All Injector Dynamics injectors are high impedance. If your car uses low-impedance injectors with a resistor box, the resistor box must be bypassed.
• Toyota MR2 Turbo 3S-GTE with an 11mm injector top needs the 11mm set (part 1050.60.11.14B.4 etc.), not this set. See the Injector Dynamics XDS 3S-GTE 11mm 4-cyl set.
• See all Injector Dynamics 3S-GTE injectors.

Vehicle Fitment

• Toyota MR2 Turbo (SW20) 1990–1996 3S-GTE – 14mm injector top
• Volkswagen 1.8T
• Audi 1.8T
• Mazda MX-5 NC 2006–2014

Not sure which set suits your car? Email sales@coore.com.au and our team will confirm fitment.
