Radium Engineering FCST-X 3-Bolt Direct Mount Fill Neck and Cap - Vented

Radium Engineering FCST-X 3-Bolt Direct Mount Fill Neck and Cap - Vented

Application: Radium FCST-X fuel cell surge tanks
Part Type: FCST-X 3-bolt direct mount fill neck and vented cap
Part Number: 20-1197-V

The Radium 20-1197-V direct mount fill neck and cap is designed for filling directly into the fuel cell. It bolts to the 3-bolt filler flange on the FCST-X fuel cell surge tank.

The neck and vented cap are anodised aluminium, sealed with an FKM O-ring gasket and fitted with stainless steel hardware. A tether keeps the cap attached.

Key Features

• Direct Fill: Fills directly into the fuel cell
• FCST-X 3-Bolt: Bolts to the FCST-X 3-bolt filler flange
• Vented Cap: Anodised aluminium vented cap with tether
• Seal: FKM O-ring gasket seal
• Hardware: Stainless steel hardware

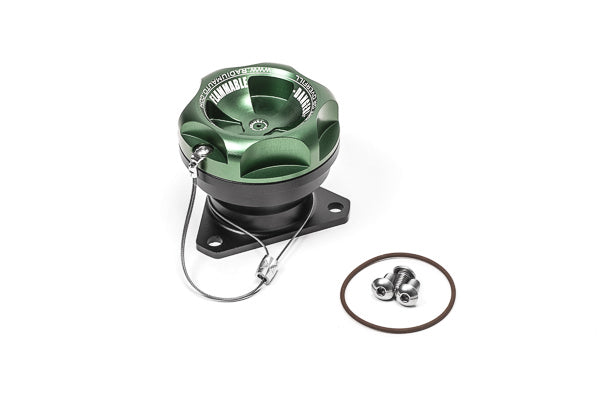

What's Included

• Anodised aluminium fill neck
• Anodised aluminium vented cap
• Cap tether
• FKM O-ring gasket seal
• Stainless steel hardware

Optional Parts

• Radium Vented Fill Neck Cap Only (20-0148-V) – replacement vented direct filler cap
• Radium FCST Filler Adapter, 6-Bolt to 3-Bolt (20-1127) – lets an older 6-bolt FCST use this 3-bolt FCST-X filler
• Radium Engineering FCST-X Fill Neck Block-Off Kit (20-1060) – blocks the FCST-X filler hole when it is not used

Important Notes

• Does not fit the original 6-bolt FCST directly – use the 20-1127 6-bolt to 3-bolt adapter
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium FCST-X fuel cell surge tanks
• Original 6-bolt FCST with the Radium 20-1127 adapter

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
