Radium Engineering Evo X Fuel Feed - Stainless Filter

Radium Engineering Evo X Fuel Feed - Stainless Filter

Application: Mitsubishi Lancer Evolution X 2008-2015 with Radium fuel hanger
Part Type: Fuel hanger feed kit with stainless filter
Part Number: 20-0946-03

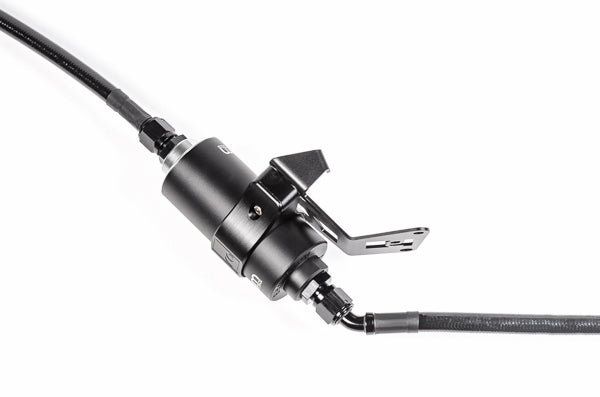

The Radium Evo X fuel hanger feed kit provides a high-flow 8AN PTFE hose and fuel filter for a restriction-free fuel feed line. The Radium Evo X fuel hanger eliminates the OEM post-pump filter, so this kit supplies the replacement – a 10 micron stainless element that can be cleaned and reused, with an integrated check valve.

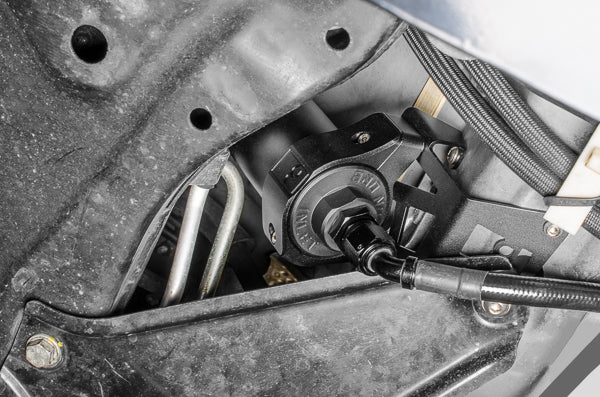

The aluminium filter bracket uses OEM mounting holes under the chassis, so no drilling or chassis modifications are required.

Key Features

• High-Flow Feed: 8AN PTFE fuel feed hose replacement
• Stainless Filter: 10 micron cleanable, reusable stainless element
• Check Valve: Integrated in the fuel filter
• No Drilling: Bracket uses OEM mounting holes
• Filter Clamp: 60mm 2-piece clamp

What's Included

• 10 micron stainless fuel filter
• 8AN adapter fittings
• 2-piece 60mm filter clamp
• Aluminium Evo X filter bracket
• 8AN PTFE fuel feed hose replacement
• Stainless steel and aluminium hardware

Optional Parts

• Radium Fuel Pump Hanger - Mitsubishi Evo X (20-1640 / 20-1642 / 20-0644-00) – the Radium in-tank hanger this kit feeds from
• Radium Black Fuel Rail Only - Mitsubishi Evo X (20-0112-12) – fuel rail that accepts an 8AN feed hose
• Radium Fuel Hanger Return - Mitsubishi Evo X (20-0249) – return line upgrade, recommended with multiple pumps
• Radium Fuel Feed Line Kit w/Microglass Filter - Mitsubishi Evo X (20-0946-05) – same kit with a finer 6 micron microglass filter

Important Notes

• The engine must be equipped with a fuel rail that can accept an 8AN feed hose
• Radium recommends upgrading the feed and return lines when running multiple pumps
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mitsubishi Lancer Evolution X 2008-2015

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
