Radium Engineering Dry Break - 1.5" Female Remote Mount (Vented)

Radium Engineering Dry Break - 1.5" Female Remote Mount (Vented)

Application: Universal – remote mount, connects to any 1.5in (38mm) ID filler hose
Part Type: Remote mount vented female dry break filler, 1.5in
Part Number: 20-1004-V

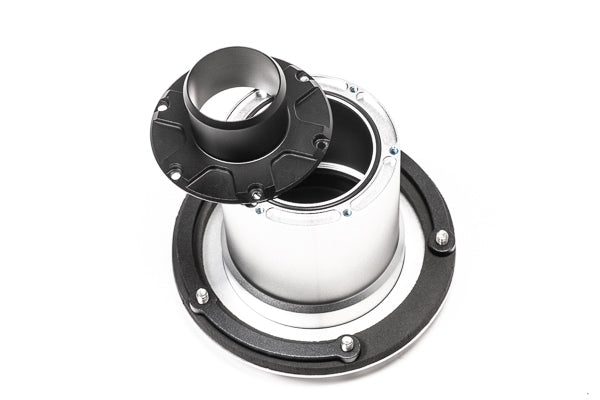

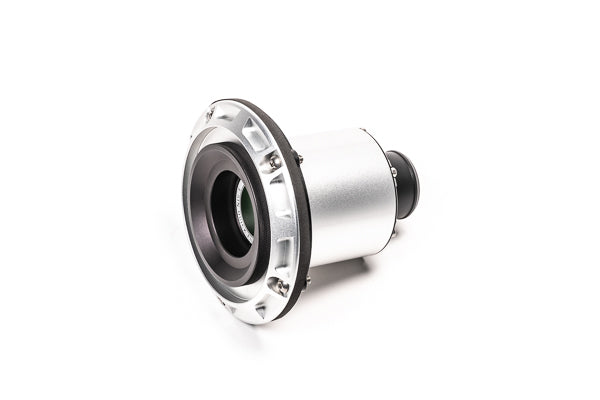

The Radium 20-1004-V is a 1.5in female dry break designed for remote mounting to an external surface such as a fender. It includes the female dry break, gasket, stainless steel hardware and an aluminium housing, and connects to any 1.5in ID filler hose.

When the dry break couplings mesh, both valve seals open and close with synchronised timing, so no fuel leaks. It mates with Radium's 1.5in male dry break (20-0996 or 20-0496) fitted to a quick fill dump can. The O-ring sealed 1.5in barbed outlet is interchangeable – remove 6 screws to fit a different outlet adapter (sold separately).

Key Features

• Dry Break Coupling: Valve seals open and close with synchronised timing for leak-free fuelling
• Remote Mount: Mounts to an external surface such as a fender
• Roll-Over Protection: Vented, with roll-over protection in case the vehicle becomes inverted
• Interchangeable Outlet: O-ring sealed 1.5in barb outlet swaps to 2.25in or 24AN adapters by removing 6 screws
• Fuel Compatibility: Components, materials and seals suit unleaded and leaded petrol, diesel, AV gas, methanol, ethanol, E15 and E85

What's Included

• Remote mount aluminium housing
• 1.5in female dry break receptacle
• O-ring sealed 1.5in barb outlet adapter
• Threaded aluminium mounting ring
• Gasket
• Stainless steel hardware

Optional Parts

• Radium Dry Break, 1.5", Male, PRV (20-0996) – mating 1.5in male dry break with pressure relief valve
• Radium Quick Fill Dump Can - 1.5" Dry Break Filler - Male (20-0496) – alternative mating 1.5in male dry break
• Radium Dry Break Filler Replacement Dust Cap (20-0604) – dust cap for the dry break
• Radium Remote Mount Filler Adapter, 2.25In (20-1007) – swap the outlet to 2.25in filler hose
• Radium Engineering Remote Mount Filler Adapter - 24AN (20-1008) – swap the outlet to a 24AN connection
• Radium Remote Mount Filler Adapter, 1.5" (20-1015) – replacement 1.5in outlet adapter
• Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) – 1.5in ID filler hose kit
• Radium Engineering Remote Mount Vented Female Dry Break 1.5" Elbow (20-1104-V) – the same dry break with a 24AN 75° elbow outlet

Important Notes

• Requires a 77mm (3.03in) hole to be fabricated
• Mating male dry break and filler hose are sold separately
• Radium dry break systems are compatible with other dry breaks of the same size
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
