Alcon Rear Bolt-On Big Brake Kit – BMW M3 E90 | 355×28mm

Alcon Rear Bolt-On Big Brake Kit – BMW M3 E90 | 355×28mm

The BMW M3 E90 is already a precision instrument — Alcon's Rear Bolt-On Big Brake Kit takes its stopping power to a level that matches its performance potential. Engineered by the same company trusted by McLaren, Aston Martin, Bentley, and Volkswagen in world-class motorsport, this kit delivers race-derived braking technology in a direct bolt-on fitment for the street and track.

Alcon has been at the forefront of motorsport braking innovation for over 30 years. Their philosophy is simple: brakes are not just brakes. The best brakes inspire confidence, augment the joy of driving, and reduce lap times more effectively and affordably than adding power. This kit is the embodiment of that philosophy.

Choose Your Caliper

This kit is available in three caliper configurations. Select the option that best suits your driving application:

CAR98 – 4-Piston Monobloc (Street Performance)

• Best for: Street use, spirited driving, occasional track days
• Gravity die-cast monobloc aluminium construction for optimum strength and low weight
• Staggered piston bore sizes for even pad wear
• Pin-mounted pads for low threshold pressure and low noise
• Dust sealed – suitable for street engineering certificate
• Front or rear fitment

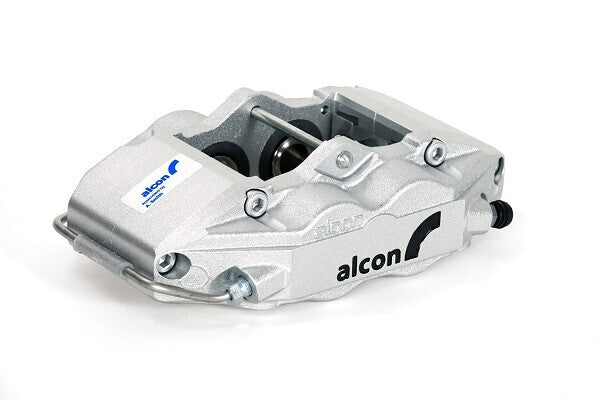

CAR36 – 4-Piston Billet Race Caliper (Track-Focused)

• Best for: Track days, club racing, high-intensity use
• Billet aerospace-grade aluminium alloy for high strength and light weight
• Stainless steel pistons as standard (28.6/28.6mm piston sizes)
• 2kg anti-knock back springs
• Hard stainless steel wear plates
• Bolted pad retainer for increased stiffness – remove retainer to change pads
• Not dust sealed – Track use only
• Rear fitment only

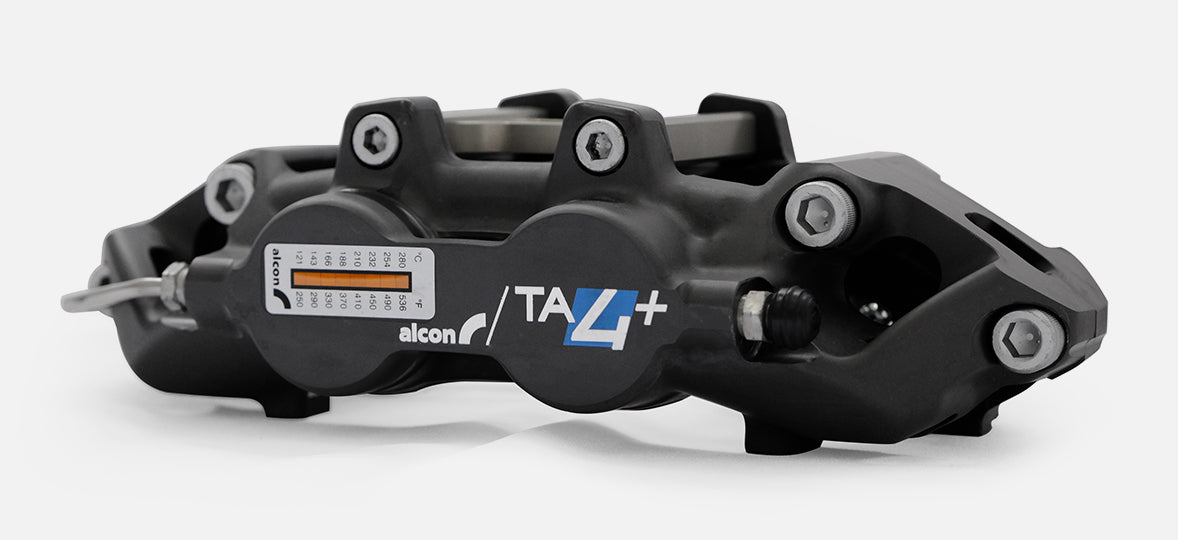

TA4 – 4-Piston Caliper (Street Performance)

• Best for: Street use with enhanced braking performance
• Dust sealed – suitable for street engineering certificate
• 4-Piston configuration
• Engineered for consistent performance from cold starts to sustained high-speed braking

Key Differences at a Glance

Alcon 2-Piece Floating Discs – 355×28mm

Each kit is supplied with Alcon's purpose-engineered 2-piece floating discs, combining a special Alcon-developed iron alloy friction ring with an aerospace specification alloy bell. Engineered for optimum bite, thermal stability, and durability at low weight.

• Unique crescent grooves on friction faces for exceptional bite without the durability issues of drilled discs
• Directional curved cooling vanes for optimum thermal management
• Floating disc system allows thermal expansion throughout disc life, minimising judder

What's in the Box

All Alcon Big Brake Kits include everything required for fitment, excluding brake pads and fluid:

• (2) Alcon 4-Piston Caliper (CAR98, CAR36, or TA4 – as selected)
• (2) Alcon 355×28mm 2-Piece Floating Disc
• (2) Vehicle-Specific Bell Assembly with Fixings
• (2) Vehicle-Specific Caliper Bracket with Fixings
• (2) Vehicle-Specific ADR Approved Brake Line (Goodridge or HEL Performance, subject to availability)

Brake Pads – Sold Separately

Brake pads are not included, allowing you to select the compound best suited to your driving application. We offer a range of Hawk Performance pad compounds from low-dust street performance options through to full motorsport compounds for endurance and high-temperature use.

Available Part Numbers

• ALC-E90-CAR98-355X28 – CAR98 4-Piston Monobloc | BMW M3 E90 | 355×28mm
• ALC-E90-CAR36-355X28 – CAR36 4-Piston Billet Race | BMW M3 E90 | 355×28mm
• ALC-E90-TA4-355X28 – TA4 4-Piston | BMW M3 E90 | 355×28mm

Vehicle Fitment

• BMW M3 E90 (Sedan)

Please review the important notes below to confirm fitment for your specific vehicle configuration.

Important Notes

1. Larger brake kits may require larger wheels and/or wheel spacers for fitment. A fitment diagram can be provided on request — please contact us with your exact vehicle details.
2. Rear brake kits for vehicles with drum parking brakes are compatible with the OEM handbrake assembly but are recommended for off-road use only. The 2-piece rotors use an aluminium hat which will wear with regular handbrake use.
3. Rear brake kits for vehicles with mechanical caliper parking brakes will require a hydraulic park brake assembly (sold separately).
4. Rear brake kits for vehicles with electronic caliper parking brakes will require either a hydraulic park brake assembly or secondary caliper (both sold separately).

Caliper Fitment Diagrams

Printable caliper fitment templates are available on request. To use:

• Download and print at full scale. Verify dimensions A & B are correct. Glue or tape to cardboard for rigidity. The dashed line represents the maximum caliper profile.
• Remove the wheel from the vehicle. Place face-down on a protected surface.
• Place the wheel location spigot of the template inside the wheel and rotate, checking for a minimum 2mm clearance between the caliper profile and the wheel in all positions. Wheel balance weights may be repositioned if required.

Why Alcon?

• ✅ Over 30 years at the forefront of motorsport braking innovation
• ✅ Trusted by McLaren, Aston Martin, Bentley, Volkswagen WRC, and Formula E factory teams
• ✅ Race-derived technology engineered for real-world road and track performance
• ✅ Bolt-on fitment — no cutting, drilling, or fabrication required
• ✅ Comprehensive kit supplied — everything needed for fitment included
