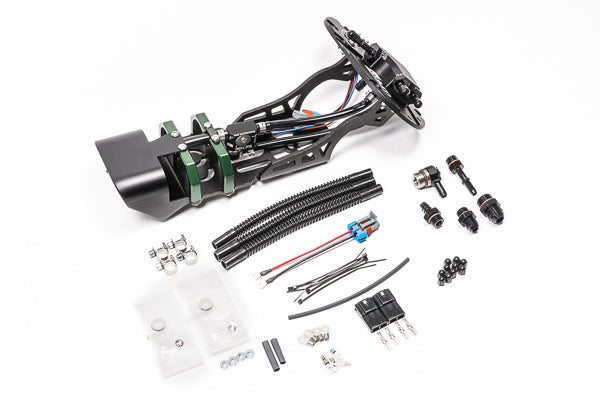

Radium Fuel Pump Hanger - Subaru WRX, STI 94-07/Forester 97-08/Liberty 89-98
The Radium fuel pump hanger allows the use of 1 or 2 aftermarket high-flow fuel pumps and is compatible with early Subaru models. The machined assembly mounts in the factory fuel tank using the OEM gasket and hardware. The fuel level sender and temperature sensors are retained.
The pumps merge into a single port outlet with 8AN ORB threads. The crossover and return uses 6AN ORB threaded ports. To simplify plumbing, the kit includes OEM hose adapter fittings for all model years listed. Shown below is the configuration for older models which use all barbs.
The installed fittings shown pictured is for mid model years which use a SAE quick disconnect fuel feed. There is also a return line SAE quick disconnect fitting included for newer models. Lastly, -6AN male fittings are included for those that use aftermarket feed and return hoses.
The custom designed stainless electrical studs easily handle the high current demand that compact bulkhead connectors lack. These serviceable connections are properly sealed and impervious to all standard and exotic fuels. The low profile design keeps all wiring tucked nicely underneath the OEM cover plate. Nonconductive acorn nuts are provided to prevent any accidental short circuits.
Furthermore, the high quality in-tank wiring is insulated with chemically resistant PTFE. Stainless steel crimp-on ring terminals and heat shrink are provided for external wiring connections. The kit includes a venturi jet pump with a new integrated pressure relief valve that is optimized for high flow pump(s). The kit also includes a streamlined anodized aluminum collector box.
Unlike the 2004-2007 WRX STi OEM variation, the Radium Engineering collector box has been optimized to work in ALL gas tanks. Shown pictured is the smallest OEM gas tank baffle found in the model range. It improves the fuel supply around the pump(s) inlet. There is a 1" check valve incorporated on the front side of the tank that serves as a trap door keeping the pump(s) supplied with fuel during aggressive driving. Furthermore, all returning fuel from the pressure regulator return and the crossover hose enter the collector box keeping it full. The OEM fuel level and fuel temperature sensors secure to the mounting bracket.
Single pump applications can reuse the OEM fuel pump controller, but it is recommended to upgrade the wiring as high flow fuel pumps draw additional current requiring larger gauge wire. Fuel pump wiring kits can be purchased separately (Part # 17-0031). Select qty1 for single pump applications and qty2 for dual pump applications.
Features
- Anodized Aluminum Laser Etched Plate
- Anodized Aluminum Collector Box and Check Valve
- Anodized Aluminum Venturi Jet Pump with Extra Orifice
- Anodized Aluminum Fittings for All Model Years
- Anodized Aluminum Dual Pump Mounts
- PTFE Wire with Stainless Steel Terminals
- Submersible Rubber Fuel Hose
- Stainless Steel Hardware and Clamps
Configuration
If supplying your own pumps, select the option "Pumps Not Included" from the menu.
Notes:
- There will be enough components included with this option to use 1 or 2 fuel pumps. Depending on the setup, some parts will simply not be used.
- A pliable fuel pump filter sock must be used for proper fitment.
Next, select the type of pumps that will be used so the appropriate internal wiring connectors will be included in the kit. If pumps are needed, the kit will come with 65 micron sock filters to be installed on all fuel pumps.
Note: This kit eliminates the OEM hanger's "post" fuel pump filter. A low micron aftermarket fuel filter should be installed downstream to protect the injectors from debris.
Vehicle Fitment:
- 1994-2000 Subaru Impreza/WRX/STI GC/GF
- 2001-2007 Subaru Impreza/WRX/STI GD/GG
- 1997-2002 Subaru Forester SF
- 2003-2008 Subaru Forester SG
- 1989-1993 Subaru Liberty BC/BF
- 1993-1998 Subaru Liberty BD/BG
| SKU | 20-0340 |
| Brand | Radium Engineering |
