An oil catch can is essential to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excess oil-saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.

PLATFORM SPECIFICS

The catch cans are strategically located for compatibility with Right Hand Drive (RHD) and Left Hand Drive (LHD) variations. Some brake line clearancing is necessary on RHD installations. Both kits are also compatible with all current aftermarket forced induction kits. For mounting, the kits use factory bosses and holes in the vehicle. No cutting, drilling or permanent modification to the vehicle is required.

The two oil catch can kits are completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems route clean filtered air back in through the engine to be burned and to promote negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors into the cabin.

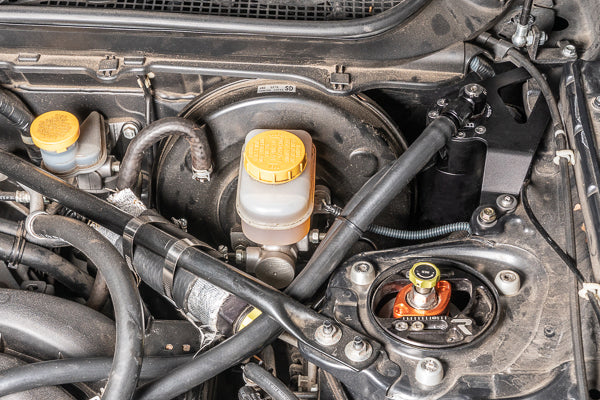

The 20-0902 CCV kit mounts on the LH side of the engine bay.

This catch can runs inline with the 1/2" breather port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this hose will experience vacuum and would normally be drawing unwanted crankcase vapors, unspent fuel, and oil sludge into the air filter intake pipe. If the engine is turbocharged or supercharged and you are finding oil accumulation stuck in the intercooler, this catch can is a necessity as oil will lower the thermal efficiency properties of the heat exchange process.

FEATURES

• Less oil consumption effectively raises octane
• Cleaner air increases engine performance
• Prevents sludge buildup in the intake
• Lowers hydrocarbon emissions
• Capacity: 6 fluid ounces
• Height (without fittings): 5 inches
• Outside Diameter: 2.45 inches

Vehicle Fitment:

• 2012-2021 Subaru BRZ ZC6
• 2022+ Subaru BRZ ZD8
• 2012-2021 Toyota 86 ZN6
• 2022+ Toyota GR86 ZN8
