Because of continuous and intense heat cycling, plastic coolant tanks have a reputation of failing over time. Fortunately, the rugged 2-piece Radium Engineering replacement is CNC machined from aluminum and anodized for increased longevity. And because aluminum is a superior thermal conductor material, heat transfer is further improved. Additionally, the metal construction is robust enough to use in racing applications.

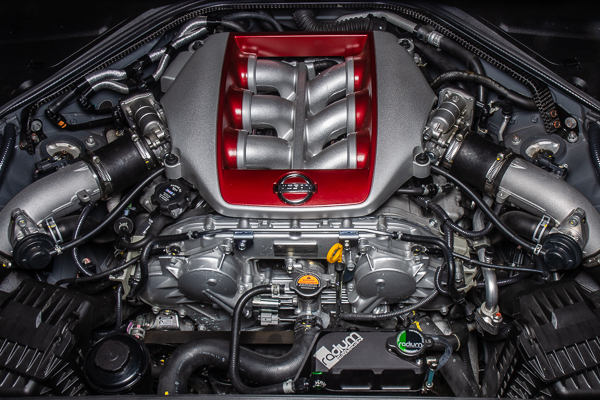

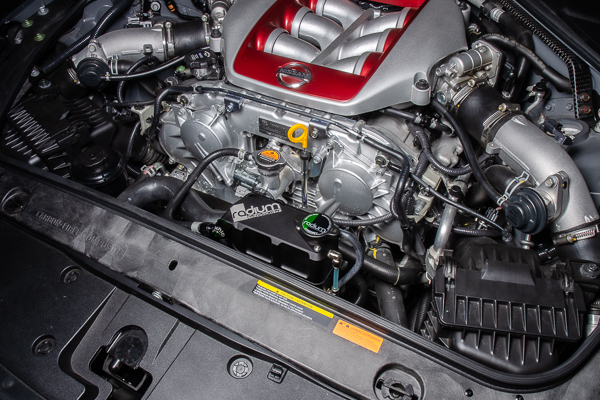

This R35 GT-R kit directly replaces the plastic Nissan tank without making permanent modifications to the vehicle. A specially designed mounting bracket secures to existing threaded holes and Radium adapter fittings interface with the factory lines. The tank functionality remains the same as the OEM cooling system. The reduced size allows more room in the engine bay for other modifications and easier access to the engine for servicing.

The Radium Engineering Coolant Expansion Tank has proved itself over the years in many applications all over the world, in race and street vehicles.

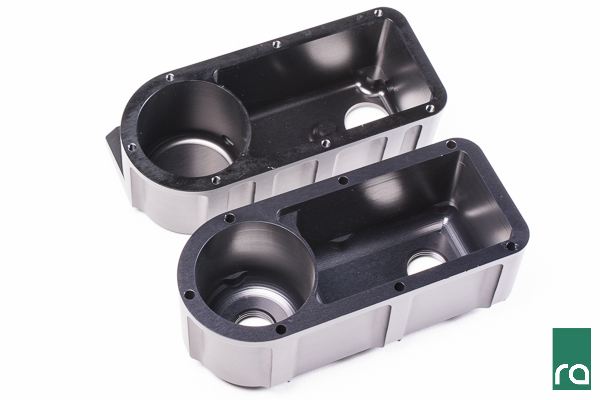

The internal design features two chambers with cross-over passages at the top and bottom. The coolant tank also has an internal swirl feature aiding in deaerating the system. For more details on the coolant tank, click HERE.

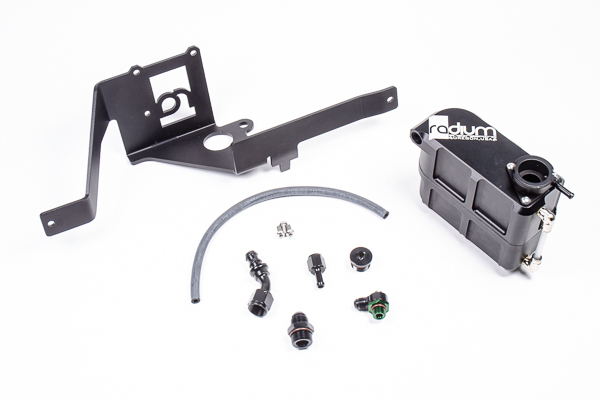

The kit includes all parts necessary for installation:

• 2-Piece Billet Aluminum Tank
• Aluminum Mounting Bracket
• Aluminum Adapter Fittings
• Overflow Hose, 7/32"
• Stainless Steel Hardware

The OEM 1.37 Bar Nissan pressure cap can be re-used. Alternatively, various pressure reliefs of the Radium Engineering Type-A cap can be used.
