Öhlins Advanced Trackday kit features the famous TTX (Twin-Tube) technology. In this particular version, its custom made for the Porsche Cayman GT4. The unique combination of a 46 mm, two way adjusted, through-rod and lightweight McPherson strut for the front and a 36 mm rear mounted TTX shock will completely transform your car.

The TTX 46 and TTX 36 shock absorbers are developed from Öhlins participation in GT and Touring car racing. That gives Öhlins Advanced Trackday kit a massive advantage. We are solely focused on providing the car with the best possible condition to set fast lap times without losing control. A fast vehicle also needs to give the driver a sense of Safety, Comfort and Performance. With Öhlins TTX Technology the products deliver in all these areas.

On the race track, you will cut seconds off your lap time compared to a standard setup. You are also just a few clicks away from a comfortable setting when driving to and from the race track, or work. With the 2-way adjustable TTX 46 and TTX 36 shock absorbers, you have the possibility to fine tune the cars handling to each race track. Just don't forget to keep your notebook close and write up your different adjustments you have made to save time and improve your track day skills even further.

Öhlins professional test drivers have tested all settings to find the optimum performance so you can focus on the driving.

General Features:

• TTX-technology
• 2-way fully independent rebound- and compression adjustment
• Aluminum high strength & light-weight products
• Rebuildable
• 2 year limited warranty
• Height adjustable
• 20 mm lower than standard
• Springs ordered seperately
• Upgradeable to 3-, 4 & 5-way adjustable including blow-off valve

Front Features:

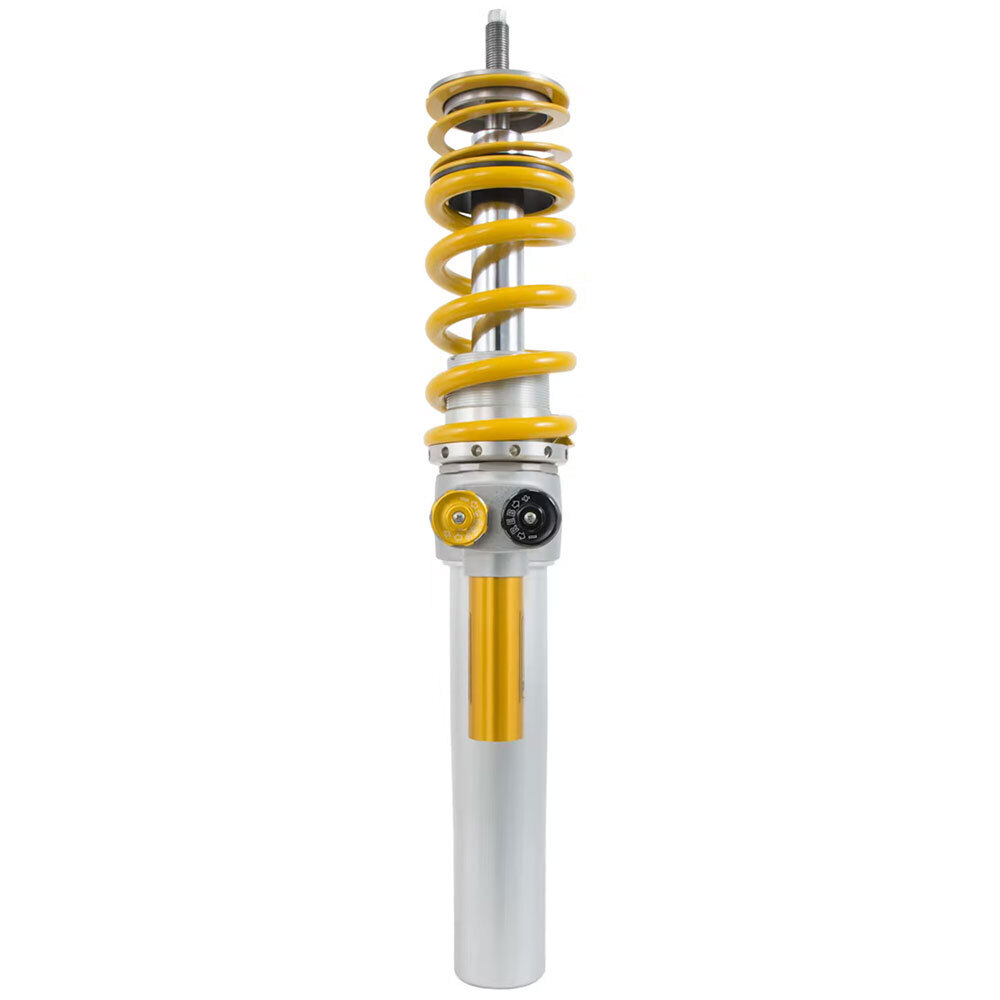

• Aluminum high strength, light-weight compact design McPherson strut
• Two-way adjustable
• Spring preload adjuster
• Coil springs (Springs ordered separately)
• Use with original top mounts

Rear Features:

• Aluminum high strength, light-weight compact design McPherson strut
• Two-way adjustable
• Spring preload adjuster
• Coil springs (Springs ordered separately)
• Use with original top mounts

Spring Recommendation:

• FRONT MAIN GT4 CS: Part # 48120-21 (120 N/mm)
• FRONT HELPER SPRING: Part # 05173-17
• REAR MAIN GT4 CS: Part # 48140-25 (120 N/mm)
• REAR HELPER SPRING: Part # 05173-17

EDC Cancellation Kits:

For cars equipped OE with electronic adjustable suspension Öhlins cancellation kit should be used. This kit ordered separately.

• 35020-32: Cancellation kit PASM, 718

Documents:

• Owners Manual Öhlins TTX (English)
• Mounting Instruction Öhlins Automotive POR MR10 (English)

Vehicle Fitment:

• Porsche Cayman GT4 Club Sport 718
