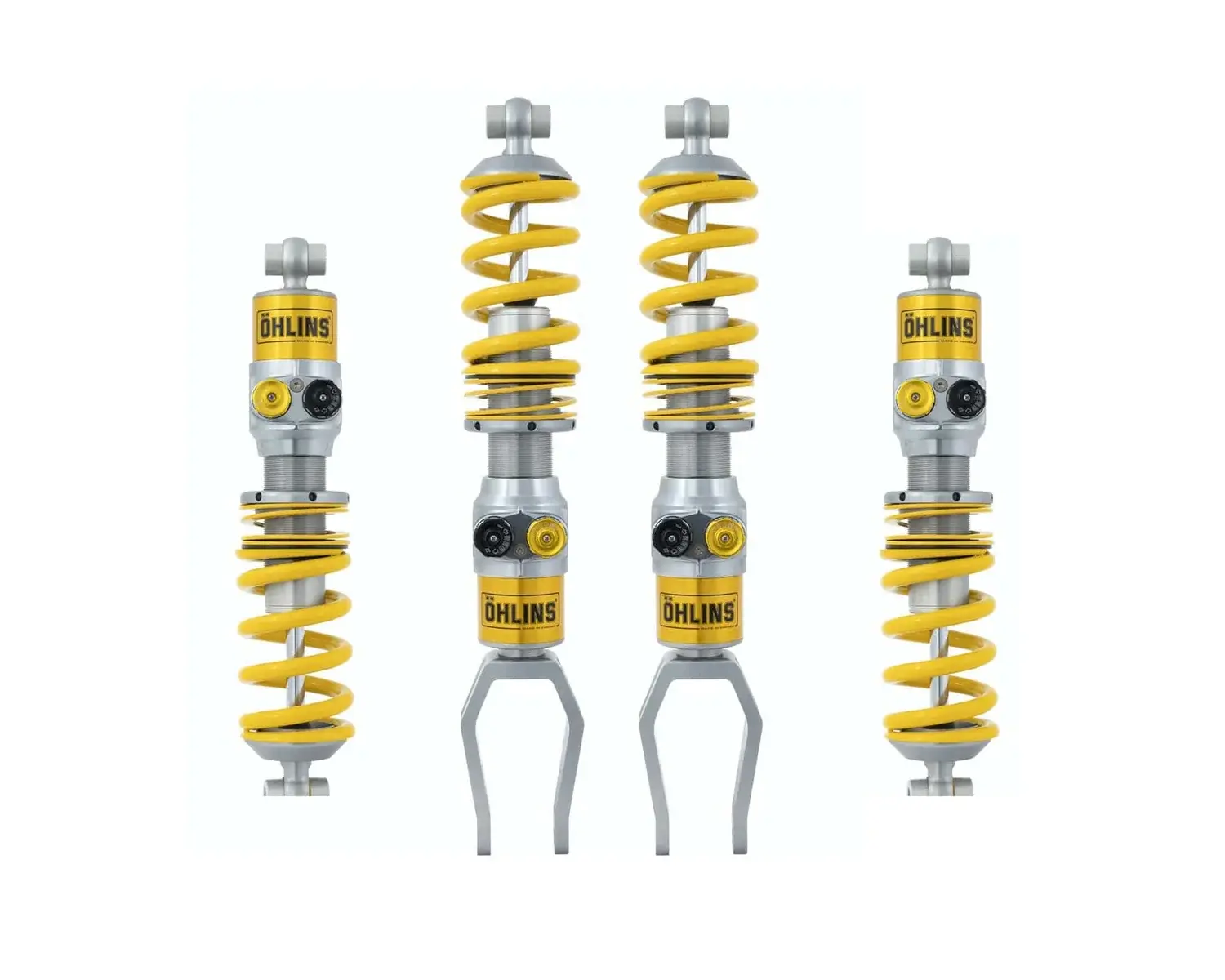

Ohlins TTX Advanced Trackday Coilovers - Audi R8 06-15
Life is meant to be lived fast and with beautiful things. You set your own rules and make sure everybody knows it. Your eye for detail shows in everything you do, and more importantly, in the way you drive. Together with Öhlins TTX 36 Advanced Trackday dampers for Audi R8, every ride will be of Grand Touring Racing quality. Our dampers are developed straight from the GT3 racing shock absorbers, giving you a true “out of the ordinary” driving experience. With a car like the Audi R8, you don’t settle for less than perfection.
We know you like the looks you get as you cruise the streets or wake up the city with the simple touch of the gas pedal. Attention breeds confidence, and with Öhlins TTX 36 Advanced Trackday dampers you’re able to ride fast yet feel safe and comfortable while achieving top performance. What more can you ask for? With the 2-way adjustable function, you’ll be able to fine tune the handling characteristics to be the king of any race track. Be unstoppable, experience perfect, and we’ll see you out on the road.
General Features:
- TTX-technology
- 2-way fully independent rebound- and compression adjustment
- Aluminum high strength, light-weight compact design shock absorber
- Upgradeable to 3- or 4-way adjustable
- Corrosion salt spray tested (ISO 9227)
- Rebuildable
- 2 year limited warranty
- Springs ordered separately
Front Features:
- TTX shock absorber
- Spring preload adjuster
- Height adjustable (approx. 0 to -10 mm lower than standard)
- Coil springs (Springs ordered separately)
Rear Features:
- TTX shock absorber
- Spring preload adjuster
- Height adjustable (approx. 25 mm lower than standard)
- Coil springs (Springs ordered separately)
Spring Recommendation:
- MAIN FRONT: Part # 4810-25 (140 N/mm)
- MAIN REAR: Part # 4810-25 (140 N/mm)
- HELPER FRONT: Part # 05173-12 (7.5 N/mm)
- HELPER REAR: Part # 05173-12 (7.5 N/mm)
EDC Cancellation Kits:
For cars equipped OE with electronic adjustable suspension Öhlins cancellation kit should be used. This kit ordered separately.
- 35020-17: Audi R8 06-15
Documents:
Vehicle Fitment:
- 2006-2015 Audi R8 42 Gen 1
SKU | AUV-MS00S1 |
Brand | Ohlins Automotive Suspension |
Shipping Weight | 30.0000kg |
Shipping Width | 0.760m |
Shipping Height | 0.430m |
Shipping Length | 0.300m |
