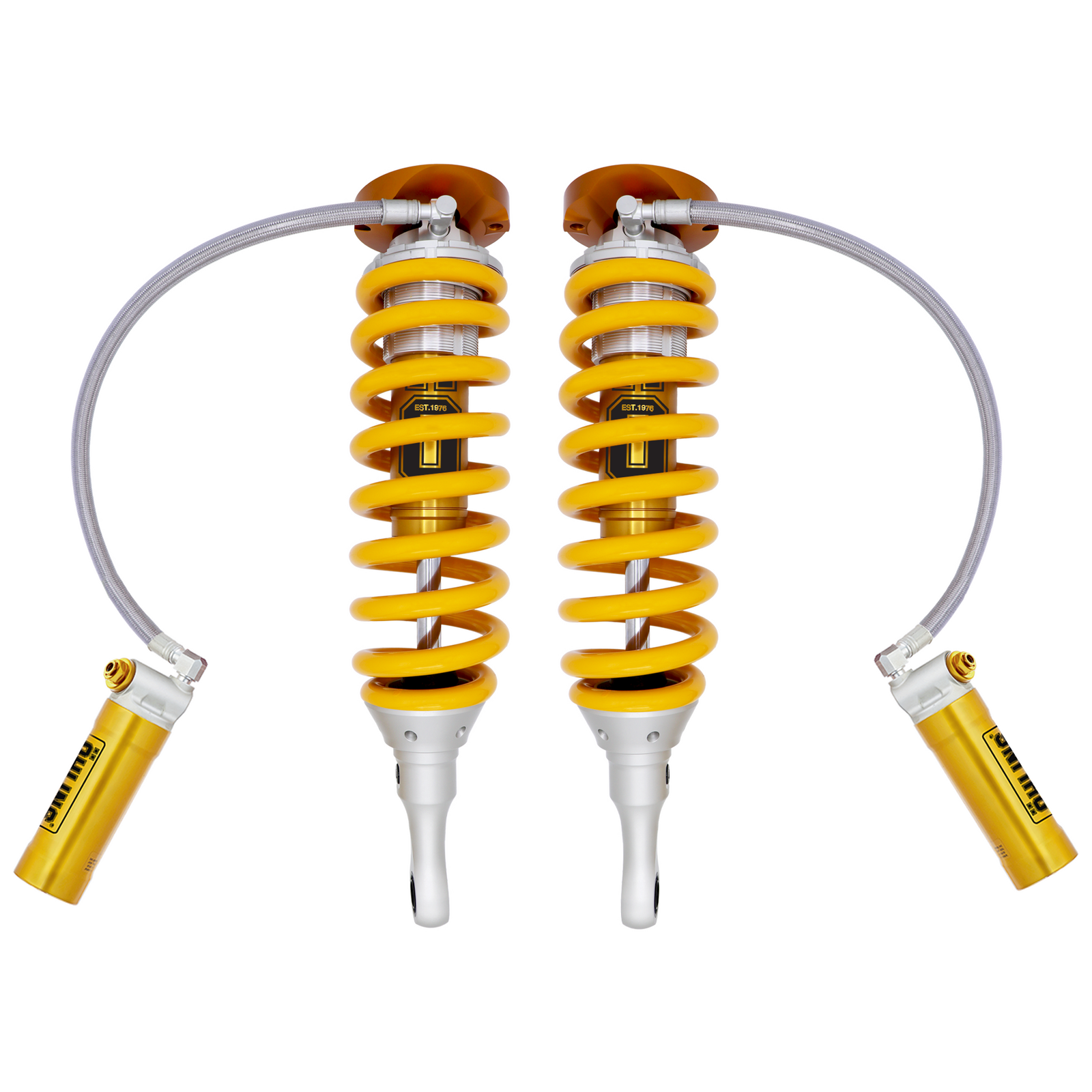

Öhlins suspension will give your Ford Ranger better grip, enhanced handling through sharp turns and more stability, whether driving through town or off-road through mud, sand, rocks and water.

Featuring three-way adjustable damping for compression and rebound, Öhlins STX suspension can be set to suit your driving style and road conditions. And with greater traction and control and the capacity to lift your vehicle up to +2 inches (5cm), you can potentially have increased ground clearance that will enable larger tyres.

The new design and features bring our product a step higher in terms of quality and performance, with the objective to approach a wide range of users.

Car Model: Ford Ranger
Year: 2022 - Present
Chassis: P703
Front Left- FOV1X10
Front Right- FOV2X10
Rear Left - FOV3X10
Rear Right - FOV4X10

FORD RANGER P703 FEATURES

STX 18/46

  • 3-ways adjustable (High/Low speed comp - Reb)
  • Front Ohlins Top Mount
  • Front spring preload adjustable
  • 3 front spring rates available, ordered separately
  • Ball joints mounted front damper
  • Ball joint and rubber bushing mounted rear dampers
  • Lift range 0" to 2"
  • 2 years warranty

Front Spring Options

  • 62462-11 - 110 N/mm front spring
  • 62462-01 - 120 N/mm front spring
  • 62462-02 - 130 N/mm front spring
SKU FOV1-2-3-4-X10
Brand Ohlins Automotive Suspension
Shipping Weight 30.0000kg
Shipping Width 0.700m
Shipping Height 0.300m
Shipping Length 0.500m
Shipping Cubic 0.105000000m3
