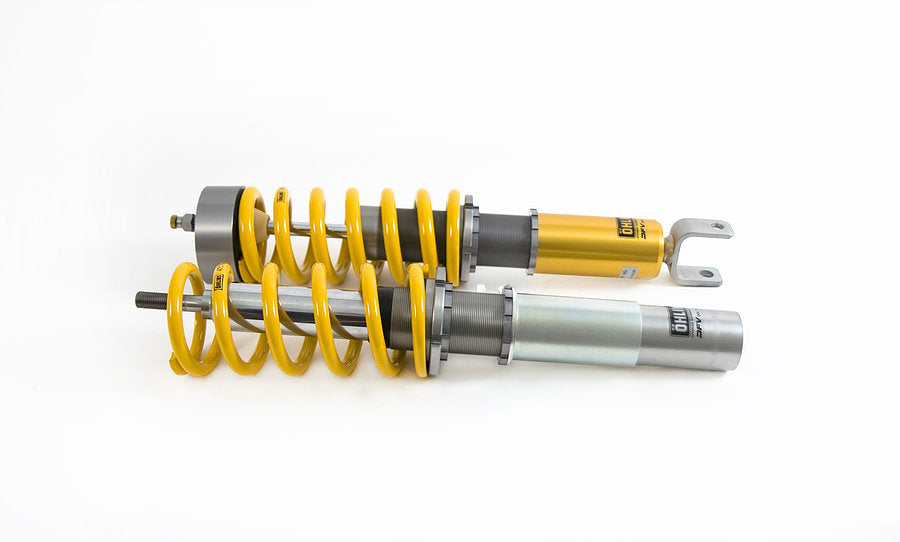

  • Öhlins Road & Track coilover set for Porsche 911 996
  • Öhlins coilover damper for Porsche 911 996
  • Öhlins suspension components for Porsche 911 996
1 / 3

Ohlins Road & Track Coilover Suspension Porsche 911 (996) GT2/GT3/GT3 RS - POS MI10S1

Ohlins Road & Track Coilover Suspension Porsche 911 (996) GT2/GT3/GT3 RS - POS MI10S1

SKU:  POS-MI10S1

$6,850.00
$6,850.00
Out of stock
税込。
Icon 1 Icon 2 Icon 3 Icon 4 Icon 5 Icon 6 Icon 7
詳細を表示する

More info

Öhlins Road & Track Coilover Suspension for Porsche 911 (996) GT2, GT3 & GT3 RS

Part Number: POS MI10S1

Öhlins Road & Track suspension brings more than 40 years of high-end racing experience and advanced suspension technology to the Porsche 911. Developed for drivers who want superior road handling without sacrificing comfort in day-to-day driving, this kit uses Öhlins DFV (Dual Flow Valve) technology to keep the car composed, controlled and enjoyable on the road.

All shocks have been corrosion salt-spray tested to ISO 9227. The result is a premium, rebuildable suspension system backed by a worldwide 2-year limited warranty.

General Features

  • DFV technology (Dual Flow Valve)
  • Individual height adjustment
  • Rebuildable shock absorbers
  • Corrosion salt-spray tested to ISO 9227
  • 2-year limited warranty

Front Features

Shock absorber McPherson strut, upside down
Damping adjustment Compression and rebound damping with one adjuster
Spring preload Adjustable
Ride height Separate adjustment
Recommended setup Approximately 20 mm lower than standard
Height adjustment range -15/+15 mm
Spring rate 70 N/mm
Top mounts Use with original top mounts

Rear Features

Shock absorber Conventional
Damping adjustment Compression and rebound damping with one adjuster
Spring preload Adjustable
Ride height Separate adjustment
Recommended setup Approximately 20 mm lower than standard
Spring rate 140 N/mm
Top mounts Use with original top mounts

Vehicle Fitment & Approval Information

Vehicle Porsche 911 (996) GT2, GT3 and GT3 RS
Years 1999–2004
EG type approval e13*95/54*0031*05 -
e13*98/14*0031*15
Other approval information TÜV certificate; manufacturer confirmation (SUI); GOCA (BE)

Purchased Parts Package

  • Complete coilover kit including mounting parts
  • C-spanner for spring preload adjustment
  • Owner’s manual and mounting instructions
  • Öhlins sticker set

Additional Option

Porsche adjuster extension package for BOSE sound system: Part no. G78055-01. Not included.

For the 996 GT2, GT3 or GT3 RS owner who wants sharper response without throwing away road manners, Road & Track delivers a properly sorted balance of control, adjustability and everyday usability. Set the height and damping to suit your car and enjoy a more composed chassis on the road.

Öhlins Road & Track Porsche 911 (996)

Part number: POS MI10S1

Fitment: Porsche 911 (996) GT2, GT3 and GT3 RS, model years 1999–2004

General Features

DFV technology (Dual Flow Valve); individual height adjustment; rebuildable; corrosion salt-spray tested to ISO 9227; 2-year limited warranty.

Front

McPherson strut, upside down; compression and rebound damping with one adjuster; adjustable spring preload; separate ride-height adjustment; approximately 20 mm lower than standard with recommended setup; height adjustment range -15/+15 mm; spring rate 70 N/mm; use with original top mounts.

Rear

Conventional shock absorber; compression and rebound damping with one adjuster; adjustable spring preload; separate ride-height adjustment; approximately 20 mm lower than standard with recommended setup; spring rate 140 N/mm; use with original top mounts.

Package Contents

Coilover kit including mounting parts; C-spanner; owner’s manual and mounting instructions; sticker set.

Approval Information

EG type approval: e13*95/54*0031*05 -; e13*98/14*0031*15. TÜV certificate; manufacturer confirmation (SUI); GOCA (BE).

Additional option: Porsche adjuster extension package for BOSE sound system, part no. G78055-01, not included.

Owner’s manual and mounting instructions are included with the kit. Set ride height and damping according to the supplied Öhlins instructions and have the suspension installed and aligned by a qualified technician.

Installation instructions: Download the Öhlins installation instructions (PDF)
