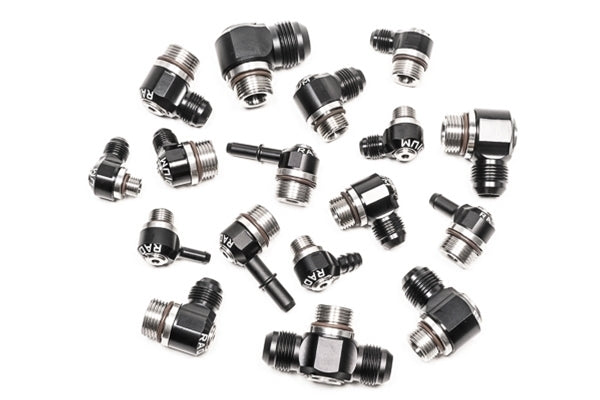

Radium V2 AN ORB Swivel Banjo Fitting, SAE Male EFI Quick Connect
Radium V2 AN ORB Swivel Banjo Fitting, SAE Male EFI Quick Connect
SKU: SKU: 20-1000-06313
More info
The Radium Engineering 20-1000 V2 AN ORB Swivel Banjo Fittings are a premium low-profile solution for 90-degree fuel and oil connections. Featuring full 360-degree rotation even after installation, these fittings are ideal for tight engine bays where clearance is critical and a fixed fitting simply won't work.
Suitable for high-pressure fuel and oil systems, these fittings are rated to 400 psi and are available in a wide range of AN ORB inlet sizes (4AN through 12AN) paired with SAE imperial and metric male outlets — covering the most common EFI fuel rail, regulator, and oil system port combinations.
Key Features
- 360° swivel rotation — rotates freely even after installation for easy hose routing
- Low profile design — multiple installed height options from 0.797in (20.2mm) depending on configuration
- High pressure rated — suitable up to 400 psi for fuel and oil systems
- Wide size range — 4AN through 12AN ORB inlet, SAE imperial and metric male outlets
- CNC machined — precision fit, anodised aluminium construction
- Made in the USA — Radium Engineering quality throughout
Available Part Numbers
| Part Number | Configuration | Installed Height |
|---|---|---|
| 20-1000-04313 | 4AN ORB → 5/16in SAE Male | 0.797in (20.2mm) |
| 20-1000-06313 | 6AN ORB → 5/16in SAE Male | 0.797in (20.2mm) |
| 20-1000-06375 | 6AN ORB → 3/8in SAE Male | 0.797in (20.2mm) |
| 20-1000-0610S | 6AN ORB → 10mm SAE Male | 0.797in (20.2mm) |
| 20-1000-0612S | 6AN ORB → 12mm SAE Male | 1.019in (25.9mm) |
| 20-1000-08313 | 8AN ORB → 5/16in SAE Male | 0.797in (20.2mm) |
| 20-1000-08375 | 8AN ORB → 3/8in SAE Male | 0.797in (20.2mm) |
| 20-1000-0810S | 8AN ORB → 10mm SAE Male | 1.121in (28.5mm) |
| 20-1000-0812S | 8AN ORB → 12mm SAE Male | 1.019in (25.9mm) |
| 20-1000-0816S | 8AN ORB → 16mm SAE Male | 1.121in (28.5mm) |
| 20-1000-10313 | 10AN ORB → 5/16in SAE Male | 0.797in (20.2mm) |
| 20-1000-10375 | 10AN ORB → 3/8in SAE Male | 0.797in (20.2mm) |
| 20-1000-1010S | 10AN ORB → 10mm SAE Male | 0.797in (20.2mm) |
| 20-1000-1016S | 10AN ORB → 16mm SAE Male | 1.286in (32.7mm) |
| 20-1000-10750 | 10AN ORB → 3/4in SAE Male | 1.286in (32.7mm) |
| 20-1000-12750 | 12AN ORB → 3/4in SAE Male | 1.286in (32.7mm) |
Why Radium Engineering?
- ✔ Designed and manufactured in the USA
- ✔ CNC machined anodised aluminium — precision fit, fuel and oil safe
- ✔ 360° swivel for easy installation in tight engine bays
- ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
- ✔ Exclusively distributed in Australia by Coore
Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Sold individually. Select your configuration from the variant selector above.
