Radium Fuel Rail Kit - Ford Shelby GT500 S197 2007-2014

Radium Fuel Rail Kit - Ford Shelby GT500 S197 2007-2014

Application: Ford Shelby GT500 S197 (2007-2014)
Part Type: High-flow upgrade fuel rail kit (LH and RH rails)
Part Number: 20-0320

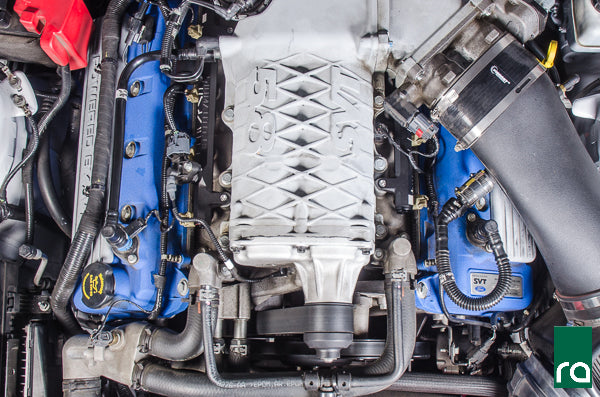

The Radium Fuel Rail Kit is a high-flow upgrade rail for the S197 Shelby GT500 factory fuel system, used with OEM or OEM-equivalent injectors. The black anodised, laser-etched aluminium rails provide a total of eight 3/4-16 (8AN ORB) ports for plumbing ancillary fuel system devices and are compatible with all fuel types, including E85.

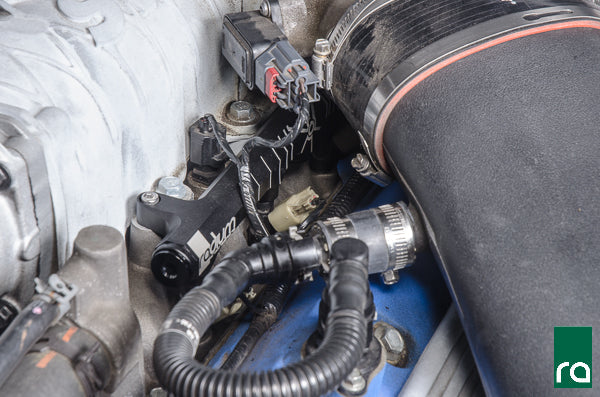

The LH rail has three ports and is clearanced for the supercharger intake pipe; its lower centre port is commonly used for a Radium fuel pulse damper. The RH rail has five ports, including a top front port for the included OEM fuel pressure sensor adapter and a top rear port commonly used for aftermarket fuel pressure monitoring.

Key Features

• Eight 8AN ORB Ports: Three on the LH rail, five on the RH rail
• Supercharger Clearance: LH rail clearanced for the supercharger intake pipe
• OEM Sensor Retained: Ford fuel pressure sensor 8AN ORB adapter included
• Pulse Damper Ready: Lower centre ports suit Radium fuel pulse dampers
• Premium Finish: Black anodised and laser etched aluminium
• All Fuel Types: Compatible with E85

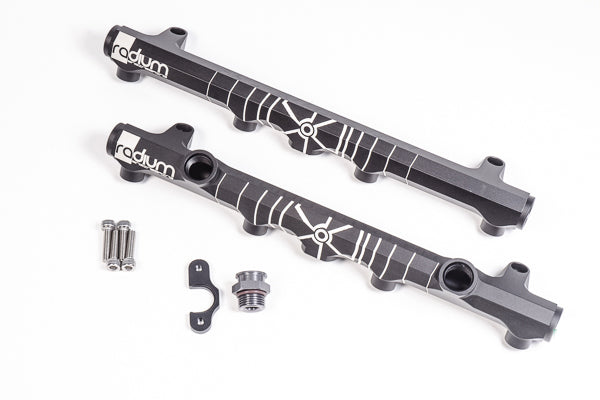

What's Included

• Black anodised, laser-etched aluminium fuel rail – RH (5 ports)
• Black anodised, laser-etched aluminium fuel rail – LH (3 ports)
• Ford fuel pressure sensor 8AN ORB adapter fitting
• Stainless steel mounting bolts

Optional Parts

• Radium Fuel Rail Plumbing Kit - Ford Mustang GT S197 (20-0334-11) – Feeds both rails in parallel from the OEM hard line near the firewall

Important Notes

• OEM or OEM-equivalent injectors must be used – equivalents must match the OEM height and upper and lower O-ring diameters and styles
• This is an upgrade rail, not a top-feed conversion; Radium does not make injector recommendations, so consult your tuner
• Accessory fittings, regulators, gauges and pulse dampers are sold separately – allow ample clearance around the ports for larger accessories
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Shelby GT500 S197 (2007-2014)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
