Radium 10AN ORB Bulkhead, 5/8" SAE Male to 5/8" SAE Male

Radium 10AN ORB Bulkhead, 5/8" SAE Male to 5/8" SAE Male

Application: Universal – 10AN ORB (7/8"-14) O-ring ports
Part Type: 10AN ORB bulkhead fitting, 5/8in SAE quick connect male to male
Part Number: 14-0754

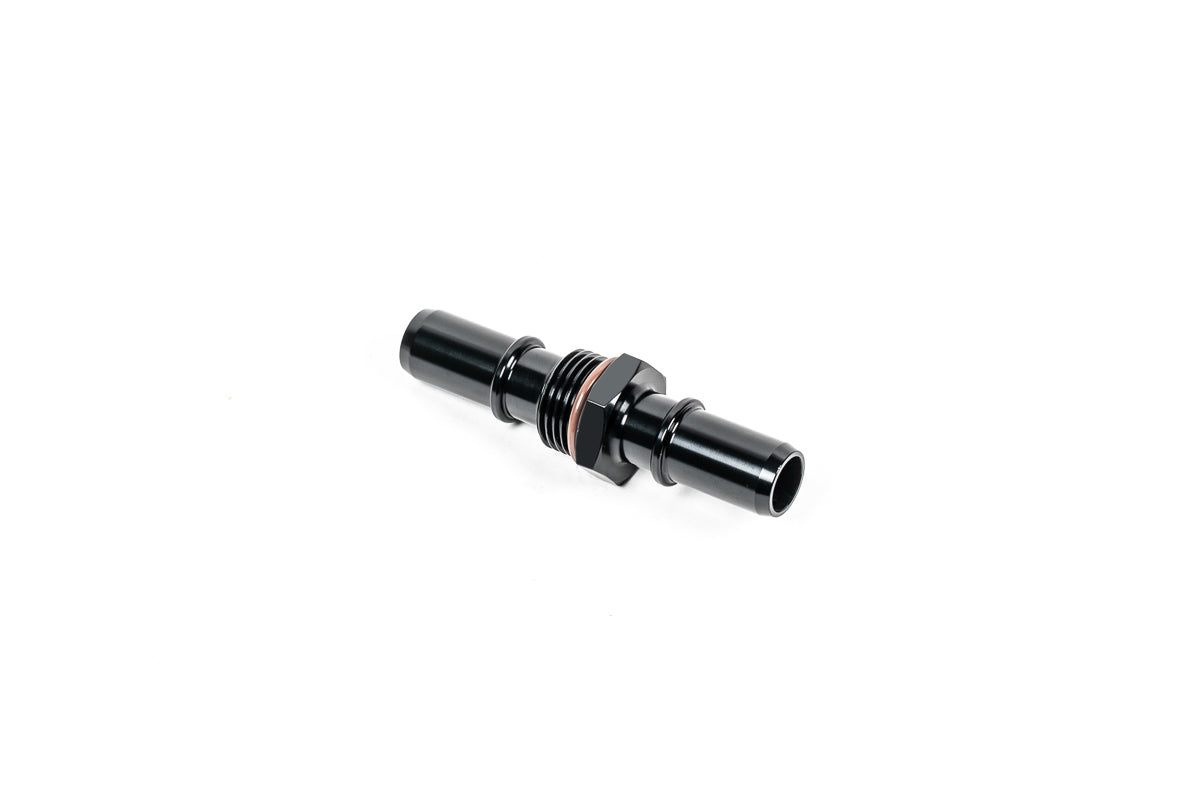

The Radium 14-0754 is a 10AN ORB bulkhead fitting with SAE quick connect male connections. Radium lists it under its 10AN ORB to SAE quick connect connections and with its 10AN ORB bulkhead fittings, which are used in various Radium fuel hangers or any ORB-threaded surface.

Because the threads on ORB fittings are not used for sealing, no PTFE paste or thread sealant is required. ORB ports are an industry standard found on many automotive plumbing products, including most Radium products. SAE quick connect fittings push on and secure to most modern USA, European and Japanese fuel injection systems, so OEM quick connect fuel lines can be adapted to aftermarket plumbing.

Key Features

• 10AN ORB Thread: 7/8"-14 O-ring boss thread
• SAE Quick Connect: Male SAE quick connect connection for OEM-style quick connect fuel lines
• Bulkhead Design: For use in Radium fuel hangers or any ORB-threaded surface
• O-Ring Sealed: FKM O-ring included – no thread sealant required

What's Included

• 1 x fitting, with the O-rings or washers it needs

Important Notes

• The threads do not seal – do not use PTFE paste or thread sealant
• Lubricate the FKM O-ring with petroleum jelly, O-ring lubricant or engine oil before installation
• To confirm the SAE quick connect size you need, measure the outside diameter of the male fitting: 0.3125in = 5/16in, 0.375in = 3/8in, 0.500in = 1/2in, 0.625in = 5/8in
• Replacement O-rings are available separately

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
